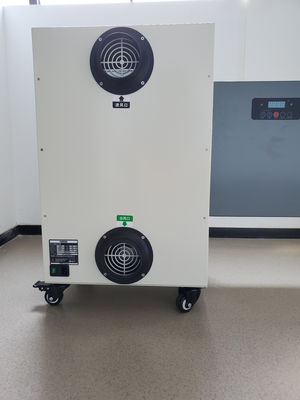

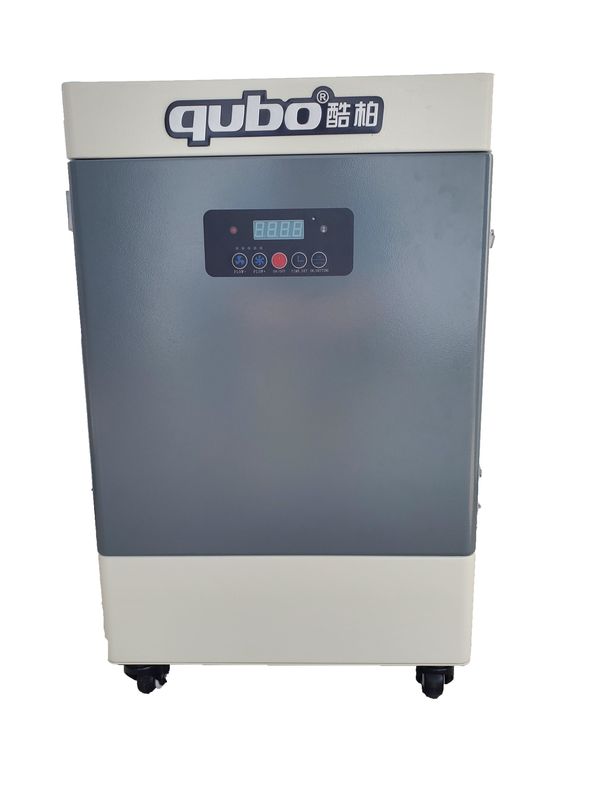

450 M3/H 330W Portable Fume Extractor For Co2 Laser Welding

450 M3/H 330W Portable Fume Extractor For Co2 Laser Welding

450 M3/H 330W Portable Fume Extractor For Co2 Laser Welding
450 M3/H 330W Portable Fume Extractor For Co2 Laser Welding
450 M3/H 330W Portable Fume Extractor For Co2 Laser Welding
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Product Name: Laser Fume Extractor Application: Laser Marking, Graving, Welding
Voltage: 110/220 V Material: Mental Shell, Alloy Material
Air Volume: 450 M³/h After Sales: Online Support
Warrenty: 2 Years Power: 330W
Noise: 70 Db Weight: 36.7 Kg
High Light:

330W Portable Fume Extractor


450 M3/H Portable Fume Extractor


Co2 Laser Welding Fume Extractor

330 W Portable Fume Extractor For Solder Station Welding Laser With Replaceable Filter





Modle FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg



425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)


protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon


450*380*50mm 450*380*50mm*2 450*380*50mm*2

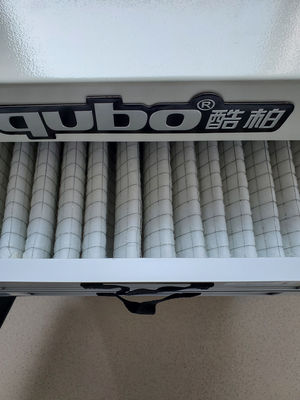

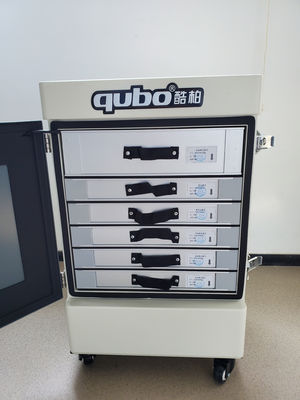

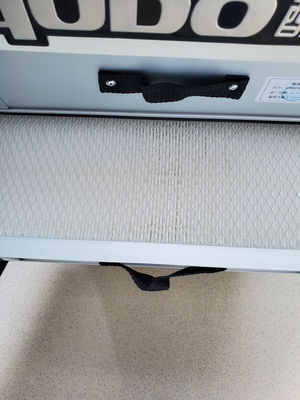

1 Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

2 Using noise reduction structure design, to keep working environment quiet.

3 Universal smoking arm,easy operation

4 Brushless DC moter,stable long service life

5 Special alloy impeller,corrosion resistant,stable and reliable large air suction



1, The machine have back blowing system, which can easily clean dust on the filters;

2, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

3, Wide application lasering welding beauty salon,has 4 whells easy to move and opreation

4, Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood




Q: What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?

A: Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.


Q: Does the size of the pipe affect the effectiveness of smoking?

A: Yes, and the impact is very large, because the increase of the bend resistance will be stronger, resulting in the weakening of suction, should be as far as possible to reduce the bending of the pipeline.


Q: Is the product influenced by the environment that affects the smoking effect?

A: Yes, such as fan flow, air conditioning (air flow); Long distances can also seriously affect the effects of smoking


Q: If the influence of fans and air conditioners is unavoidable, what methods can be used to solve the problem

A: Use a smoking mask to block the influence of peripheral wind (air flow) on it


Q: Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.


Q: How long will the machine keep work?

A: At least 8 years.
