| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | DX1001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Dimensions: | 420*245*400mm | Application: | Welding Heat-gun Handling |
|---|---|---|---|
| Air Flow: | 235m3/h | Noise: | <52 Db |
| Power: | 80w | Filter: | 3 Layers |
| Weight: | 12 Kg | ||
| Highlight: | 17m/S Hair Salon Fume Extractor,Multilayer Filter Hair Salon Fume Extractor,17m/S Air Purifier For Salon |
||

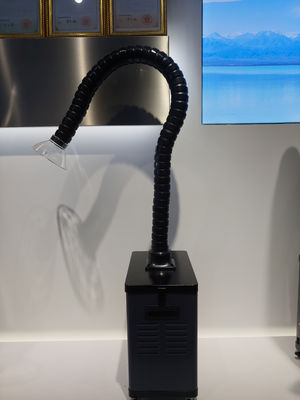

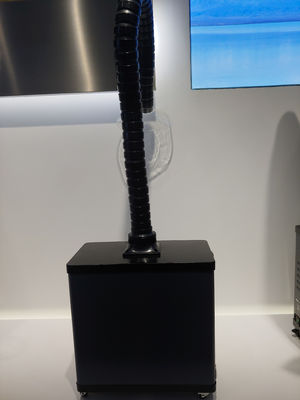

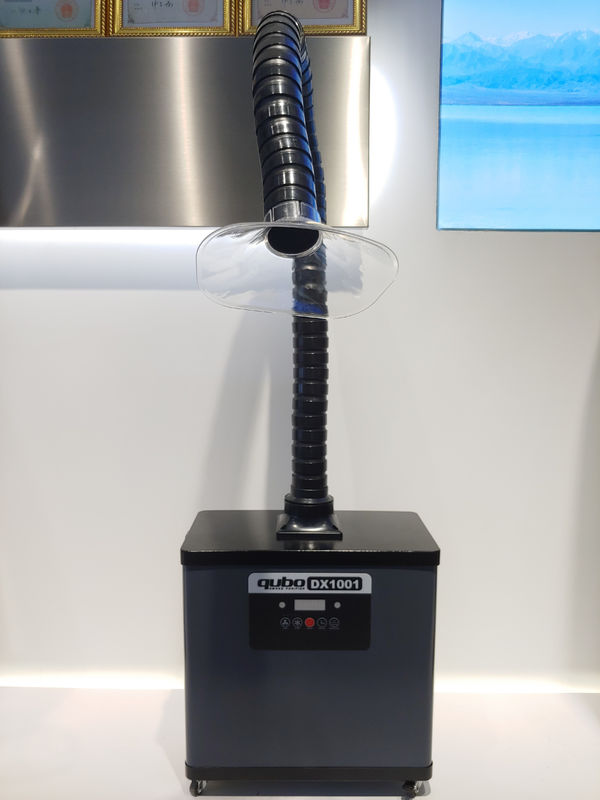

Laser Marking Welding Smoke Extractor Grey Mental Body Portable Suction Arm Replaceable Hoods
Features:
1 Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.
2 Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously
3 Wild application lasering welding beauty salon,has 4 whells easy to move and opreation
4 Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood
5.Low cost basis: as low as 1.85 yuan / day (8 hours / day)
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 235 |
| Noise(db) | <52 |
| Voltage | 110/220 |
| No-load speed(r/min) | 2000 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 12 |
| Negative pressure(pa) | 2000 |
Advantages:
1.Multilayer filter design,make sure more thorogh purification
2.Brushless DC moter,stable long service life
3.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation
4, Noise canceling design,quieter working place
5,Multiple filtration ensures complete purification of harmful smoke and dust
FAQ
Q:What are the application fields of your products?
A:Laser marking, laser welding, laser coding, laser cutting, laser cladding, laser cleaning, grinding, polishing, drilling and so on
Q:How does it work?
A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters
Q:What is the approximate life of the product in continuous operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Product part picture:
