| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | FL1500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 146 Kg | Noise: | 67 Db |
|---|---|---|---|
| Voltage: | 110/220 V | Power: | 900 W |
| Warranty: | 2 Years | Application: | SMT, Wave-soldering, Big Laser Cutting, Welding Plant |
| Type: | Fume Extractor | Air Volume: | 800 M³/h |
| After-sales Service Provided: | Online Support | Material: | Mental |
| High Light: | 900W Explosion Proof Dust Collector,800m3/H Explosion Proof Dust Collector |
||
Marking Welding Engraving Cutting Fume Extractor for Co2 Laser Machine With Air Dust Filter
Features:
1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
2, Using noise reduction structure design, to keep working environment quiet;
3, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
4, It is also a dust collector, bad smell remover, and fire proof;
We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.
5, High negative pressure;
6, The machine is in a very small dimension, never occupying space;
Specifications:
| Model | Fume extractor FL1500 |
| Voltage | 110/220V |
| Dimension | 750*565*1535 mm |
| Air flow | 1500 m³/h |
| Power | 1200W |
| Noise | 67 db |
| Filters | 4 layers |
| Weight | 146 kg |
| Filters layers | Size and Frequency to replace |
| Fire proof | 660*523*50 mm |
| Bellows pocket | 22 layers 550*430 mm |
| HEPA | 660*523*120 mm |
| Active carbon filters | 660*523*100 mm |
Usage: SMT, big laser cutting, Wave-soldering, welding plant.
Instruction:
1, Layers of different filters, clean air fasters and more efficient;
Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.
2, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
3, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

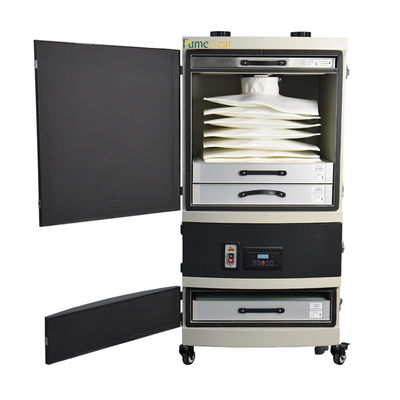

4, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
5, Portable because it assemble with 4 wheels;
FAQ:
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.
Q: How long will the machine keep work?
A: At least 8 years.
