| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | X1002 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Noise: | <55 Db | Dimensions: | 420*245*400mm |
|---|---|---|---|
| Air Flow: | 150*2m3/h | Filter: | 3 Layers |
| Weight: | 13 Kg | Power: | 200w |
| Application: | Welding Heat-gun Handling | ||
| High Light: | 420*245*400mm Hair Salon Fume Extractor,Height 400mm Hair Salon Fume Extractor,420*245*400mm Portable Smoke Extractor |
||

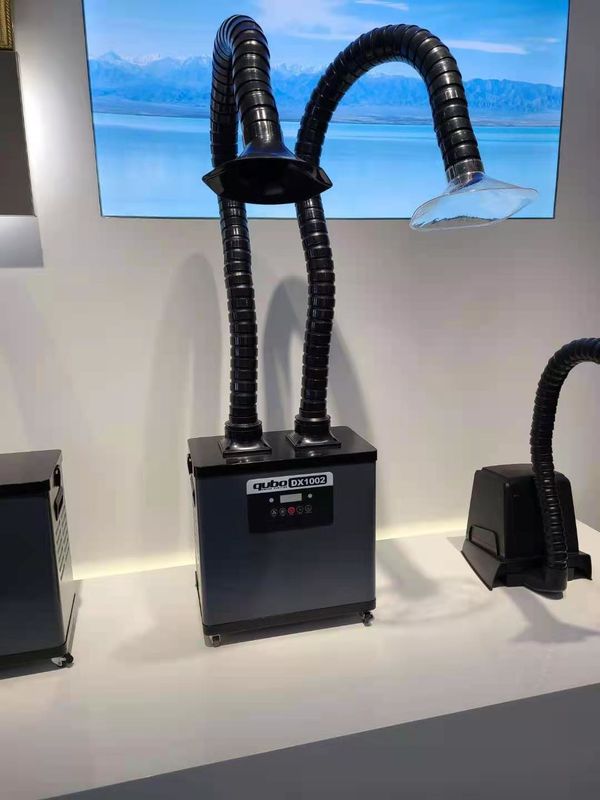

Welding Heat-Gun Handling Smoke Purifier Two Suction Arms Universal Wheels Portable Movable
Features:
1.Rapid purification by multi-layer filtration
2.Universal smoking arm, random orientation positioning

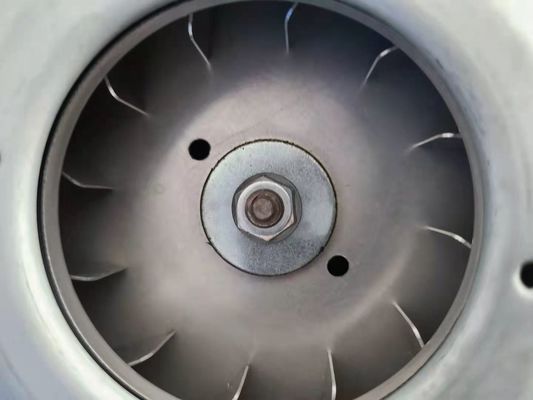

3.Special alloy impeller, anti-corrosion, stable operation
4.All three filters can be replaced separately
Instructions:
| Power(W) | 200 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 150*2 |
| Noise(db) | <55 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4500 |
| Wind spped(m/s) | 11.5*2 |
| Weight(kg) | 13 |
| Negative pressure(pa) | 2200 |
Advantages:
1.Multiple filtration ensures complete purification of harmful smoke and dust
2.Noise canceling design,quieter working place
3.Microcomputer chip control, safe and efficient, stable and durable, more secure remote control operation
4, Multilayer filter design,make sure more thorogh purification
5,Brushless DC moter,stable long service life
FAQ
Q:What is the approximate life of the product in continuous operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q:What are the diameter specifications of smoking pipe?
A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.
Q:What is the smoking hood made of? Can it withstand high temperature? What are their characteristics?
A:Smoking cover silica gel, acrylic, aluminum alloy a total of three materials; The flexibility of silica gel material can withstand the temperature of about 400 degrees, and the cigarette butts are not bad. And acrylic material light transmittance is good, but not high temperature resistance; Aluminum alloy is light, beautiful, high temperature resistant, high price.

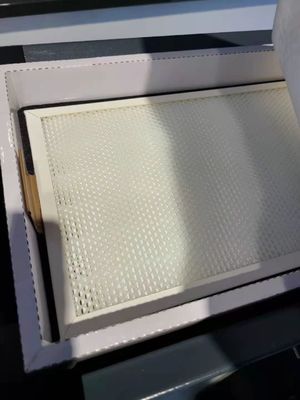

Product part picture:
