| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q100 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Noise: | 57db | Dimension: | 340*265/480mm |
|---|---|---|---|
| Voltage: | 110/220 V | Warranty: | 2 Years |
| Application: | Soldering, Big Laser Cutting, Welding | Power: | 80w |
| Filter: | 2 Layers | Weight: | 11kg |
| Air Flow: | 220 M3/H | ||
| High Light: | 1800pa Suction Dust Collector,Unshaped Frame Suction Dust Collector |
||
Laser Marking Welding Mini-Pot Fume Extractor Replaceable Tube Hood Filter With Brushless Dc Motor
Features:
1.Portable tube and hood,choice suitable accessories, various specifications tube various materials hood.
2.Compact design machine with 4 universal wheel under,easy to move and storage
3.Noise canceling design low noise,only the volume of ordinary speech,More quiet workshop, reduce the surrounding complaints.
4.Durable mental frame structure,firm and unshaped,small footprint
5.Removabel hook and cover,change the filter and check the filter condition easyier
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 220 |
| Noise(db) | <57 |
| Voltage | 110/220 |
| No-load speed(r/min) | 5800 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 11 |
| Negative pressure(pa) | 1800 |
Advantages:
1.Rapid purification by multi-layer filtration
2.All three filters can be replaced separately
3.Universal smoking arm, random orientation positioning
4.Can maximize the use of filters
5.Special alloy impeller, anti-corrosion, stable operation
FAQ:
Q:Is it difficult to maintain?
A:Check whether the pipe and interface are sealed, and replace the filter element regularly.
Q:Can it be used in extremely humid or corrosive environment?
A:No, because in a particularly humid environment, moisture or corrosive gas will damage the filter element and the internal components of the machine; but usually in spring, humid weather, such as "southerly days", will not affect the use.
Q:Can it be used in high temperature environment?
A:The high temperature should be divided into instantaneous high temperature and long-term high temperature, the temperature within 60 degrees can be used; the temperature over 60 degrees for a long time is not recommended, because it may lead to fire.
Q:When the filter element needs to be replaced, will it give an alarm?
A:The indicator light of digital display control panel will flash red light and give out alarm sound.
Q:Can the pipe of smoke and dust move back and forth with the laser head?
A:In principle, it can, but it can't if auxiliary gas is needed

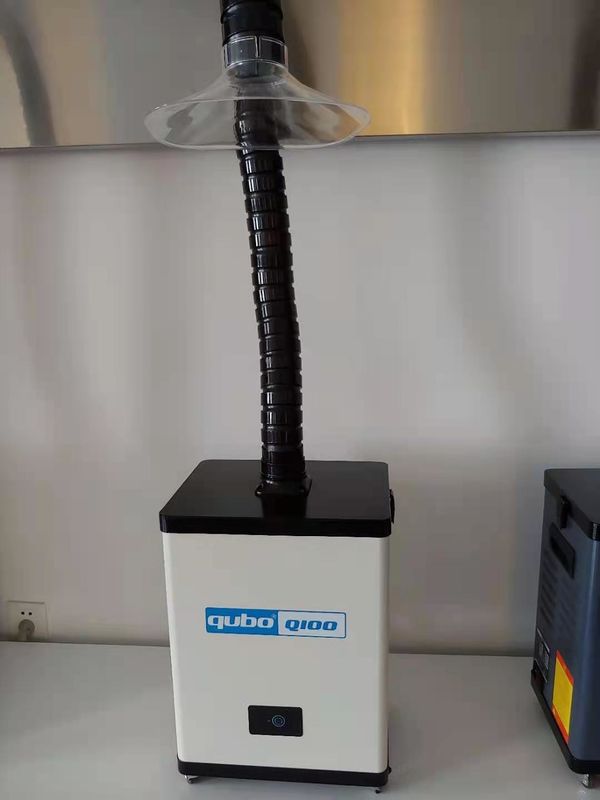

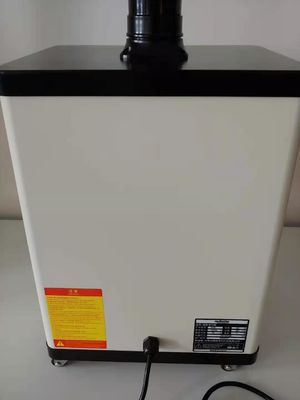

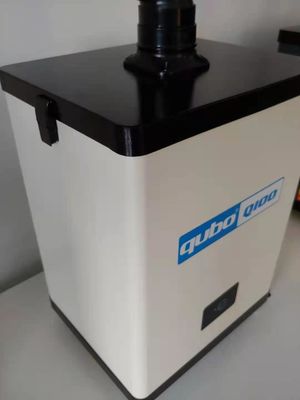

Product part picture:
