Portable 2200pa Suction Dust Collector For Laser Cutting

Portable 2200pa Suction Dust Collector For Laser Cutting

  • Portable 2200pa Suction Dust Collector For Laser Cutting
  • Portable 2200pa Suction Dust Collector For Laser Cutting
  • Portable 2200pa Suction Dust Collector For Laser Cutting
Portable 2200pa Suction Dust Collector For Laser Cutting
Product Details:
Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-400W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, D/A, D/P, L/C
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Voltage: 110/220 V Negative Pressure: 2200 Pa
Noise: 64 Db Air Flow Speed: 10.5*2 M/s
Power: 300W Material: Mental Shell
Weight: 37 Kg Filter: 6 Layer
High Light:

2200pa Suction Dust Collector

,

300W Suction Dust Collector

Portable Welding Laser Cutting Fume Extraction With Flexible Double Suction Tubes





Advantages:



1, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

2, Using noise reduction structure design, to keep working environment quiet;

3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

4, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;



Size of Filter (can be customized)

Fireproof

protection net

No
Primarry filter 365*180*25mm
PP Medium filter 365*175*55mm
Glass fiber filter 365*175*55mm*2

Activated carbon

filter

360*195*250mm *3




Specifications:



Model FL-400W
Filter 6 Layers
Weight 36.7kg

Dimensions

(L*W*H)

425*315*765mm
Air Flow 480m³/h
Noise <64dB
Power 300W
Voltage AC 110-220V
No load Speed 6500rpm
Air Speed 10.5*2m/s
Negative pressure 2200Pa
Air inlet port 2*75mm



Instructions:



1, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

2, Assembled with DC brushless motor, which will have more stable performance and longer life;

3,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

4, Imported integrated AC fan, stable performance and longer life;

5, Saving energy and cost, lower noise and larger suction power;

6, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;



FAQ:



Q: How long will the fume extractor keep work?

A: At least 8 years.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.



Product picture:

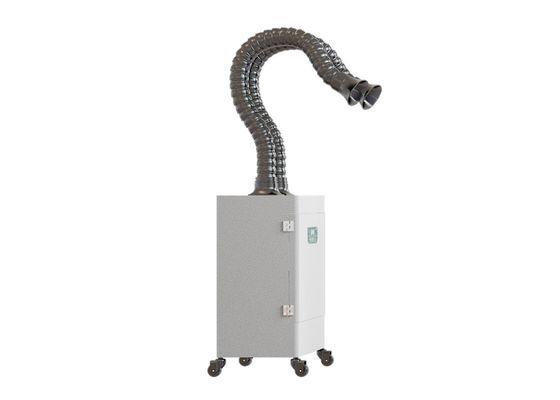

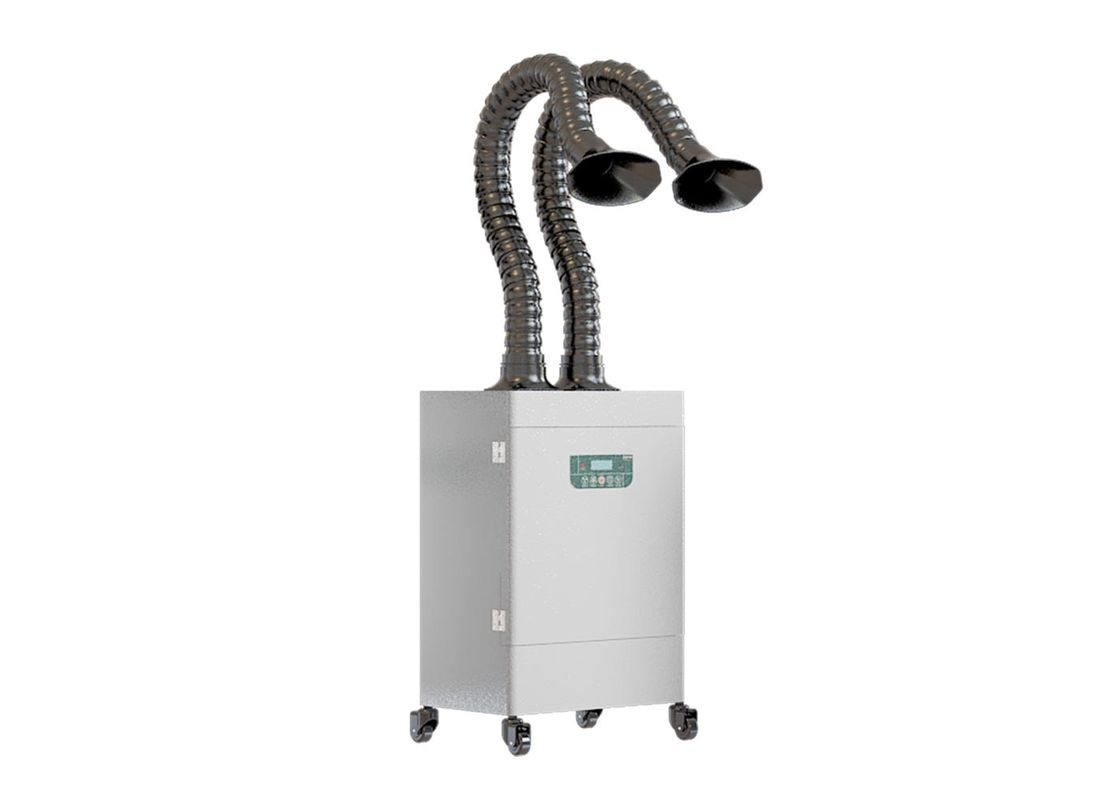

Portable 2200pa Suction Dust Collector For Laser Cutting 0
