| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | FL-500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 60kg | Air Flow: | 700m3/h |
|---|---|---|---|
| Filter: | 5 Layers | Dimensioms: | 550*440*885mm |
| Noise: | <70dB | Power: | 450w |
| Voltage: | AC 110-220V | ||
| High Light: | 450W Laser Cutting Fume Extractor,700m3/H Laser Cutting Fume Extractor,450W Portable Dust Collector Machine |
||
Laser Cutting Fume Extractor With Industrial Air Filter Dust Collector Machine
Features:
1,Durable mental frame structure
2, Universal smoking arm,easy operation
3, Using noise reduction structure design, to keep working environment quiet;
4, Multiple filtration design,rapid purification
5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
Instructions:
| Model | FL-300 | FL-500 | FL-700 |
| Filter | 3 Layers | 5 Layers | 6 Layers |
| Weight | 36.7kg | 60kg | 70kg |
|
Dimensions (L*W*H) |
425*315*700mm | 550*440*885mm | 550*440*1035mm |
| Air Flow | 450m³/h | 700m³/h | 750m³/h |
| Noise | <59dB | <70dB | <75dB |
| Power | 330W | 450W | 700W |
| Voltage | AC 110-220V | AC 110-220V | AC 110-220V |
| Size of Filter (can be customized) | |||
|
Fireproof protection net |
No | 415*335*25mm | 415*335*25mm |
| Primarry filter | 450*380*100mm | 450*380*100mm | 450*380*100mm |
| PP Medium filter | 450*380*50mm | 450*380*50mm | 450*380*50mm |
| Glass fiber filter | No | No | 450*380*100mm |
|
Activated carbon filter |
450*380*50mm | 450*380*50mm*2 | 450*380*50mm*2 |
Advantages:
1, Easy to set tp and use, do not need professionl to install, with replaceable filter,save more service life.
2, Self-developed brushless dc motor,no need to change carbon brush,save more power consumpution,able to working 40000hours continuously
3, Wide ramge of application lasering welding beauty salon,has 4 whells easy to move and opreation
4, Various types of materials make you have more choices to smole hood,silicone hood acrylic hood alloy hood
5,layers filters can be separate replace,high efficient sterilization make work place safer
FAQ:
Q:What are the application fields of your products?
A: Laser marking, laser welding, laser coding, laser cutting, laser cladding, laser cleaning, grinding, polishing, drilling and so on
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: How does your product work?
A: Physical principle: interception → activated carbon adsorption → clean air through layers of filters
Q:Do you do oem?
A: Yes

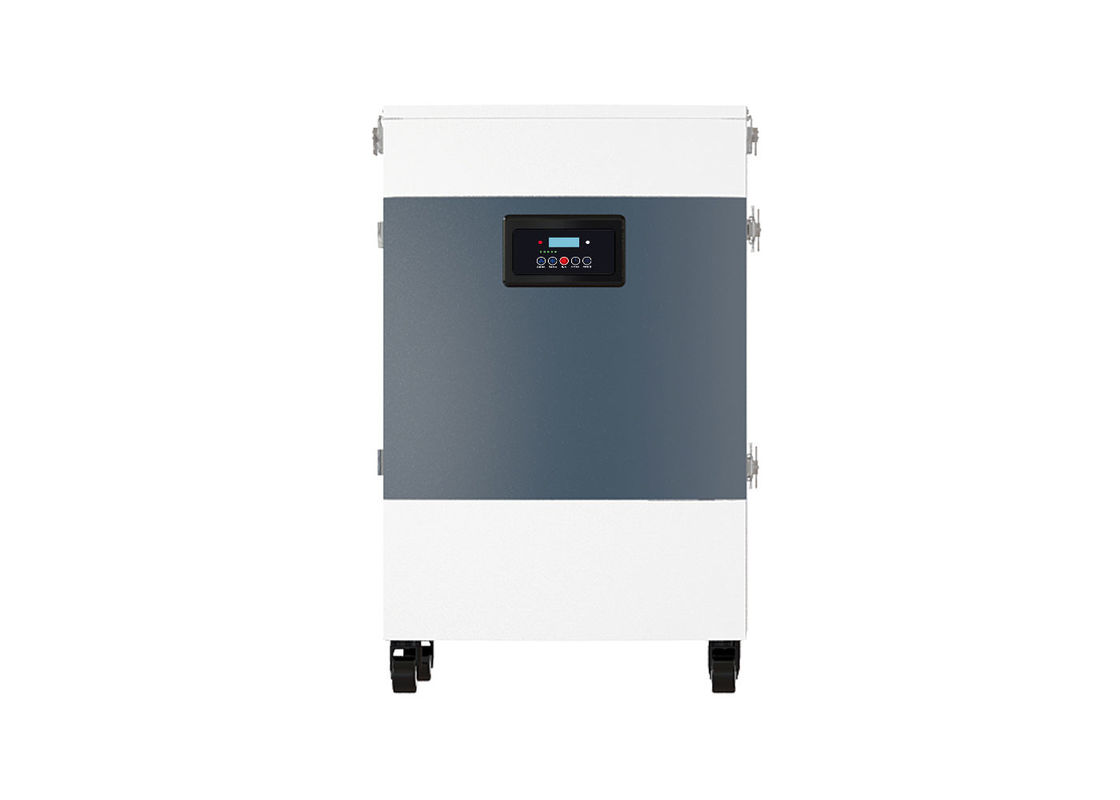

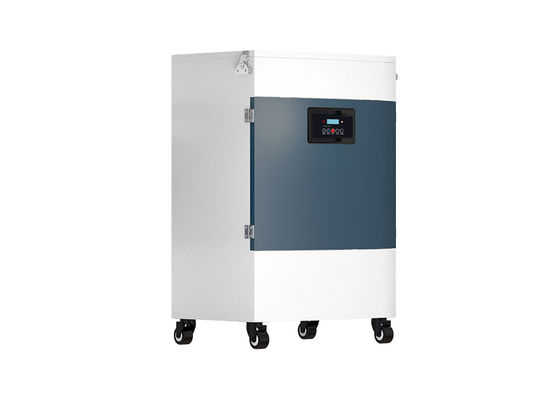

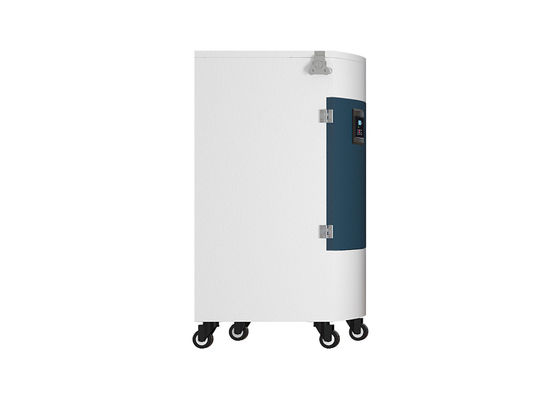

Product part picture:
