| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | FL-480 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Voltage: | 110/220 V | Noise: | 70 Db |
|---|---|---|---|
| Air Flow: | 480 M3/H | Dimension: | 550*415*920mm |
| Power: | 350W | Application: | Soldering, Big Laser Cutting, Welding Plant |
| Material: | Mental Shell | Warranty: | 2 Years |
| Filter: | PET Roller Filter | Weight: | 42kg |
| High Light: | 350W Laser Fume Extractor,480M3/H Laser Fume Extractor,480M3/H Dust Collector Machine |
||

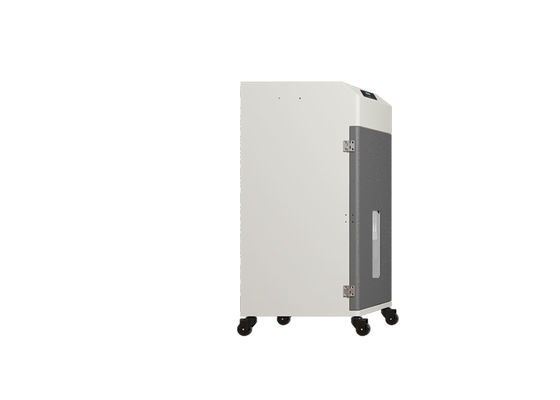

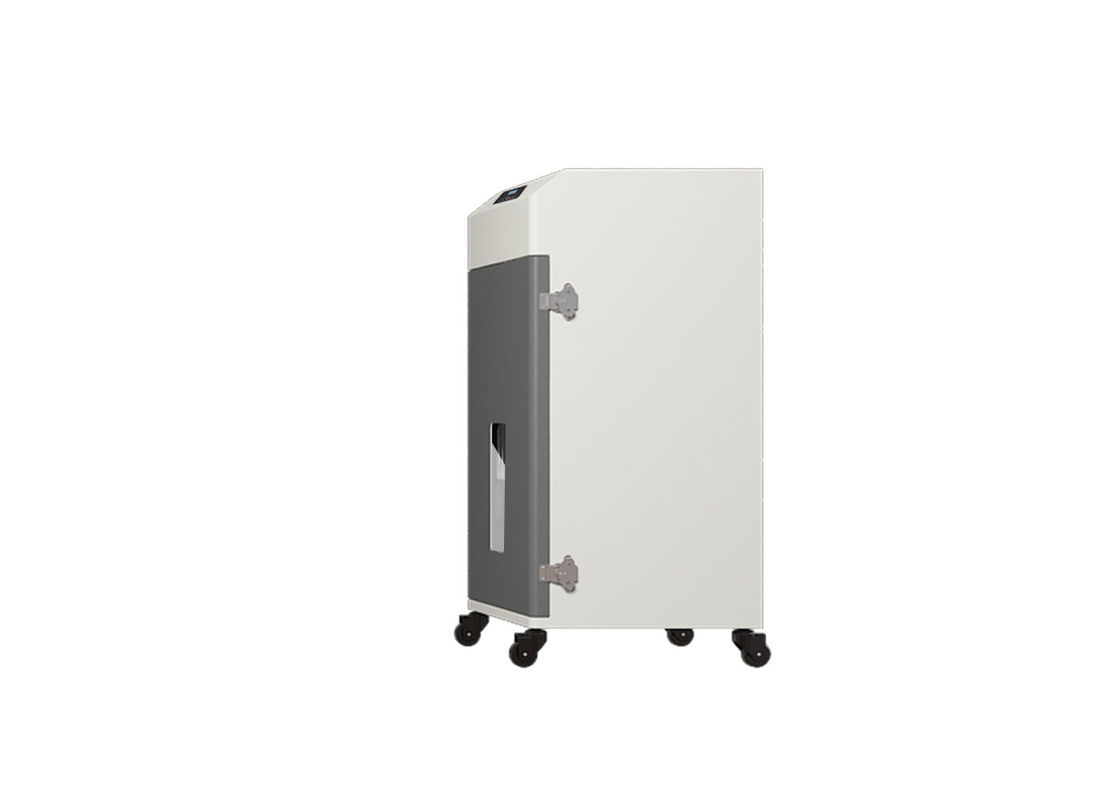

Laser Cutting Fume Extractor With Industrial Air Filter Dust Collector Machine
Features:
1, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
2, Assembled with DC brushless motor, which will have more stable performance and longer life;
3, Using noise reduction structure design, to keep working environment quiet;
4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
Instructions:
| Model | FL-300 | FL-500 | FL-700 |
| Filter | 3 Layers | 5 Layers | 6 Layers |
| Weight | 36.7kg | 60kg | 70kg |
|
Dimensions (L*W*H) |
425*315*700mm | 550*440*885mm | 550*440*1035mm |
| Air Flow | 450m³/h | 700m³/h | 750m³/h |
| Noise | <59dB | <70dB | <75dB |
| Power | 330W | 450W | 700W |
| Voltage | AC 110-220V | AC 110-220V | AC 110-220V |
| Size of Filter (can be customized) | |||
|
Fireproof protection net |
No | 415*335*25mm | 415*335*25mm |
| Primarry filter | 450*380*100mm | 450*380*100mm | 450*380*100mm |
| PP Medium filter | 450*380*50mm | 450*380*50mm | 450*380*50mm |
| Glass fiber filter | No | No | 450*380*100mm |
|
Activated carbon filter |
450*380*50mm | 450*380*50mm*2 | 450*380*50mm*2 |
Advantages:
1, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
2, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
3, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
4, All mental material shell, durable and sturdy;
5, Layers of different filters, clean air fasters and more efficient;
Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.
FAQ:
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Product part picture:
