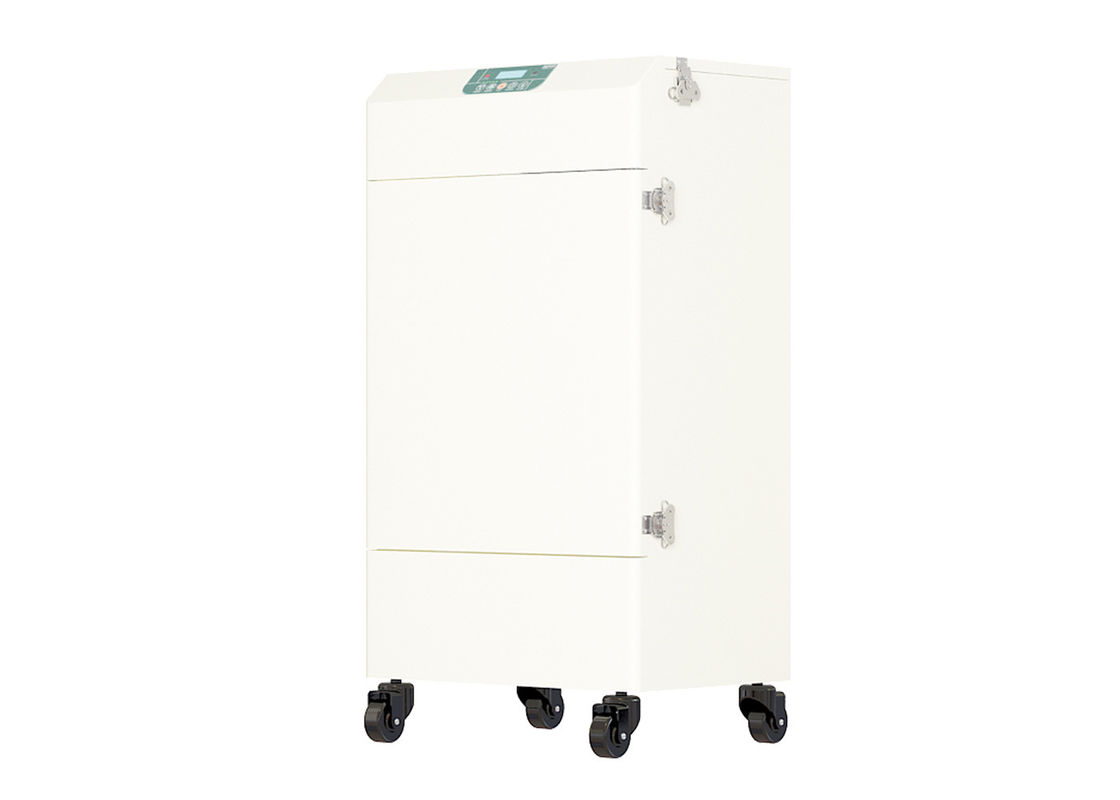

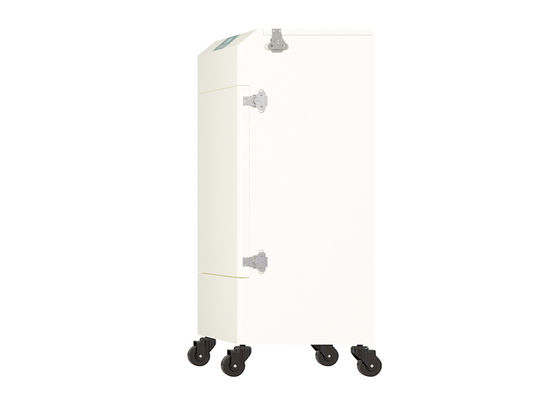

680W Solder Fume Extractor 8 Layers Welding Air Filter

680W Solder Fume Extractor 8 Layers Welding Air Filter

  • 680W Solder Fume Extractor 8 Layers Welding Air Filter
  • 680W Solder Fume Extractor 8 Layers Welding Air Filter
  • 680W Solder Fume Extractor 8 Layers Welding Air Filter
680W Solder Fume Extractor 8 Layers Welding Air Filter
Product Details:
Place of Origin: CHINA
Brand Name: Fumego
Certification: CE PONY
Model Number: FL600W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: one set one carton
Payment Terms: L/C, T/T
Supply Ability: 10000/month
Contact Now
Detailed Product Description
Voltage: 110/220 V Weight: 75 Kg
Application: Soldering, Big Laser Cutting, Welding Plant Key Words: High Negative Pressure
After Sales Support: Online Support Power: 680W
Noise: 64db Warranty: 2 Years
High Light:

680W Solder Fume Extractor


8 Layers Solder Fume Extractor


680W Welding Air Filter

Solder Fume Extractor For Welding Air Filter With 8 Layers Filters





1, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

2, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4, Saving energy and cost, lower noise and larger suction power;

5, The filter element adopts a return structure and can hold dust on all sides;




Laser Marking, Laser Cutting, Laser Engaving



Model FL600W
Air intake interface 90mm
Filter layer 8
Weight 75kg



Air Flow 620m³/h
Air Speed 23m/s
Noise <65dB
Power 680W
Filtering effect 0.3μm-99.97%
Voltage AC 110-220V
Fire proof net 1 layer
2.Primary efficiency filtration cotton 365*180*55 (mm)
3.Medium efficiency filtration cotton 365*175*55(mm)
4 Hepa filter 365*195*250(mm)
5-8 active carbon filters 365*195*250(mm)




1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The machine is in a very small dimension, never occupying space;

4, No need to assemble, plug and turn it on, start to work;

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;




Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.
