High Negative Pressure Portable Smoke Extractor 680W Machine Dust Collector

High Negative Pressure Portable Smoke Extractor 680W Machine Dust Collector

Product Details:
Place of Origin: CHINA
Brand Name: Fumego
Certification: CE PONY
Model Number: FL680W
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: one set one carton
Payment Terms: L/C, T/T
Supply Ability: 10000/month
Contact Now
Detailed Product Description
Noise: 64 Db Warranty: 2 Years
Voltage: 110/220 V Weight: 75 Kg
Application: Soldering, Big Laser Cutting, Welding Plant Key Words: High Negative Pressure
After Sales Support: Online Support Power: 680W
Highlight:

23m/s Machine Dust Collector

,

680W Machine Dust Collector

,

680W Portable Smoke Extractor

Laser Fume Extractor Portable Welding Dust Collection With 8 Layers Filters





Description:



1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, The fan speed is adjustable, timing function to turn on and off, and remote control;

3, Imported integrated AC fan, stable performance and longer life;

4, Assembled with DC brushless motor, which will have more stable performance and longer life;

5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;



Applications:



Laser Marking, Laser Cutting, Laser Engaving



Specifications:

Model FL600W
Air intake interface 90mm
Filter layer 8
Weight 75kg

Dimensions

(L*W*H)

550*430*1100mm
Air Flow 620m³/h
Air Speed 23m/s
Noise <65dB
Power 680W
Filtering effect 0.3μm-99.97%
Voltage AC 110-220V
Fire proof net 1 layer
2.Primary efficiency filtration cotton 365*180*55 (mm)
3.Medium efficiency filtration cotton 365*175*55(mm)
4 Hepa filter 365*195*250(mm)
5-8 active carbon filters 365*195*250(mm)
UV-LIGHT 100W



Features:



1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

2, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.



FQA:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.



Picture:

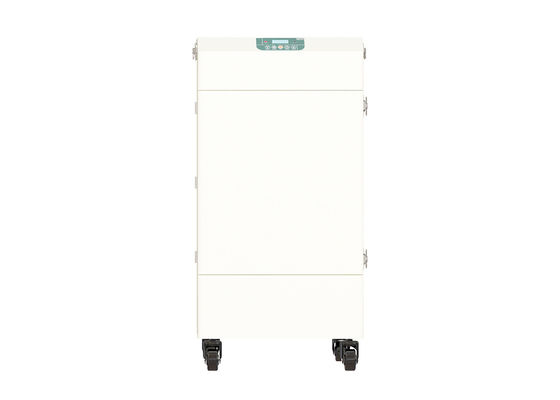

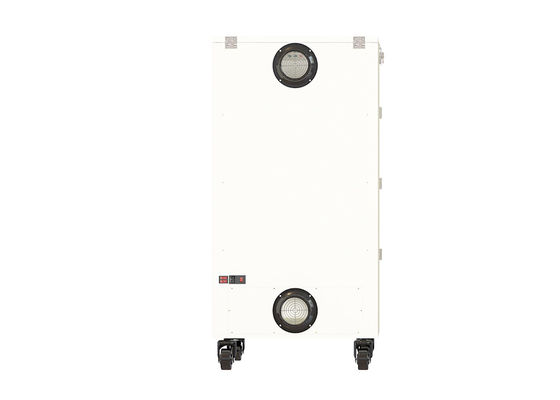

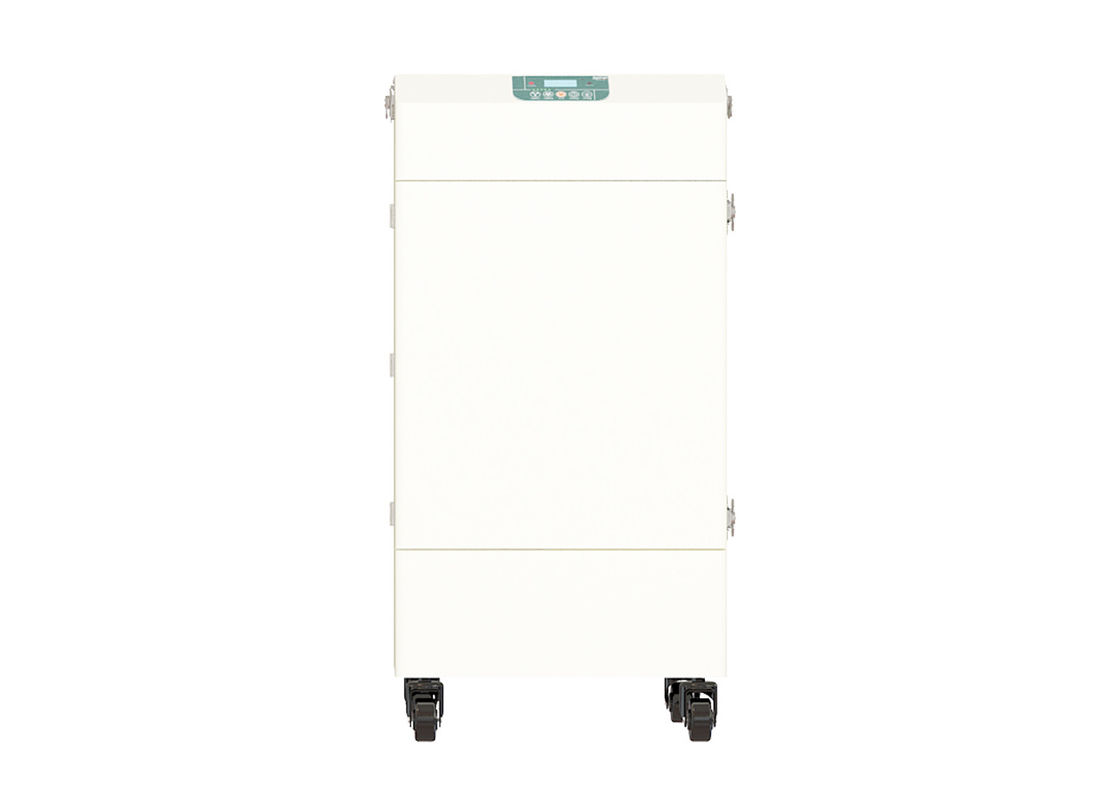

High Negative Pressure Portable Smoke Extractor 680W Machine Dust Collector 0
