Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm

Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm

Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm
Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm
Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL350C-2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Noise: 64 Db Warranty: 2 Years
Voltage: 110/220 V Application: Soldering, Big Laser Cutting, Welding Plant
Weight: 16 Kg Filter Efficiency: 99.97%
Dimensions: 400*300*360mm Keyword: Fume, Smoke, Dust, Bad Smell Remover
After-sales Service Provided: Online Support Power: 330W
High Light:

Double Suction Arm Vacuum Fume Extractor

,

ROHS Vacuum Fume Extractor

Portable Soldering Fume Extractors Double Suction Arm Welding Smoke Absorber





Instruction:



1, High negative pressure;

2, The machine is in a very small dimension, never occupying space;

3, No need to assemble, plug and turn it on, start to work;

4, The filter element adopts a return structure and can hold dust on all sides;



Specifications:



Model Fume extractor FL350C-2
Power 330 W
Air flow 350 m³/h
Dimension 400*300*360 mm
Voltage 110/220 V
Noise 63 db
Weight 16 kg
Filters 4 layers
Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 365*175*55 mm  3-6 months
HEPA filter 365*195*250mm 3-6 months
Usage Manual soldering, small Laser machine and Soldering robot

Air flow speed



18m/s
No load Speed 6500rpm
Negative pressure 2400Pa
Air inlet port 2*75mm



Features:



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

3, Saving energy and cost, lower noise and larger suction power;

4, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

5, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.



FAQ:



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power can’t clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

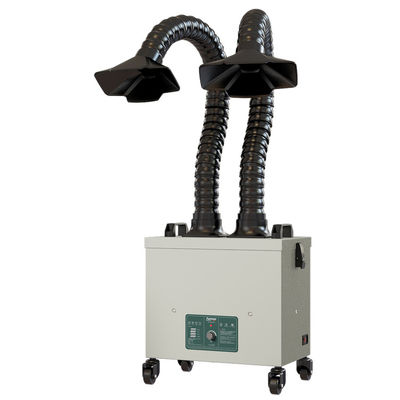

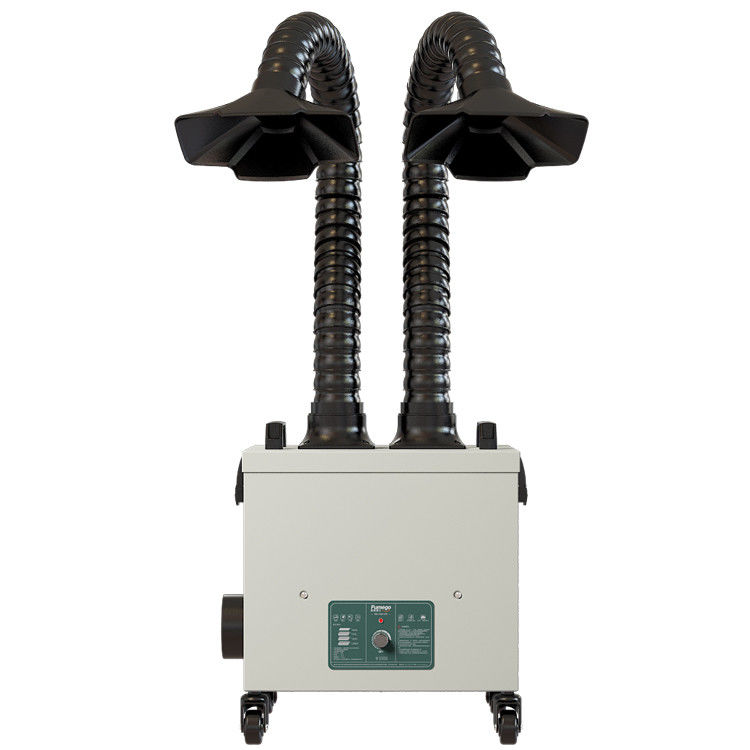

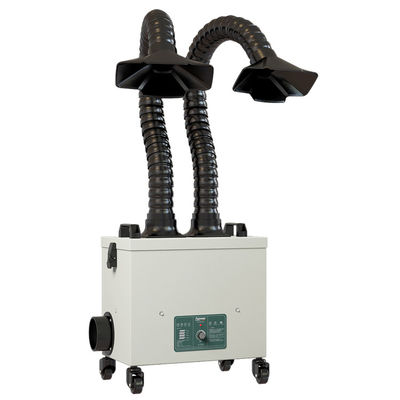

Product picture:



Portable 400*300*360mm Vacuum Fume Extractor Double Suction Arm 0
