Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof

Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof

Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof
Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof
Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL600
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Product Name: Laser Fume Extractor Weight: 36.7 Kg
Air Volume: 450 M³/h After Sales: Online Support
Power: 330W Noise: 70 Db
Voltage: 110/220 V Warrenty: 2 Years
Usage: Laser Cleaning Cutting Marking Welding Material: Mental Shell
High Light:

330W Vacuum Fume Extractor

,

Plasma Cutting Vacuum Fume Extractor

,

330W Plasma Cutting Fume Extractor

Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof





Features:



1,Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, The fan speed is adjustable, timing function to turn on and off, and remote control;

3, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

4, The filter element adopts a return structure and can hold dust on all sides;

5, All mental material shell, durable and sturdy;

6, No need to assemble, plug and turn it on, start to work;



Specification:

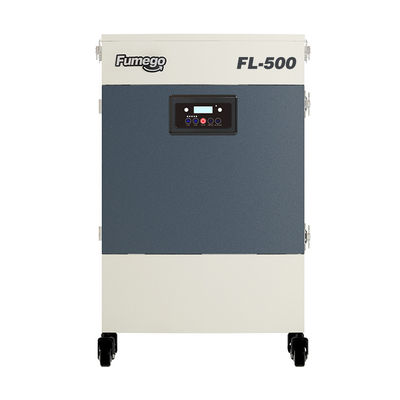

Model FL-300 FL-500 FL-700
Filter 6 Layers 8 Layers 9 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 500m³/h 750m³/h 1000m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter 450*380*50mm 450*380*100mm 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2



Advantages:



1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

2, High negative pressure; and the machine is in a very small dimension, never occupying space;

3, Our machine can maximize to use the filters;

    We are using different layers filters to collect different size level of pollution.

4 Using noise reduction structure design, to keep working environment quiet;

5, Microcomputer chip control, digital display, and remote control;

    Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

6, It will alarm when the filters is out of service;

    People can be easily know when to replace filters and any problem happened if the machine is out of work.



FAQ:



Q: Can it work with 2-3 pipes in the same time?

A: Yes, Our models can have many pipes working in the same time.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes



Picture:

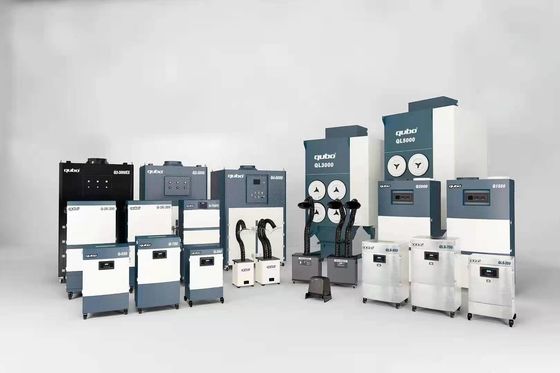

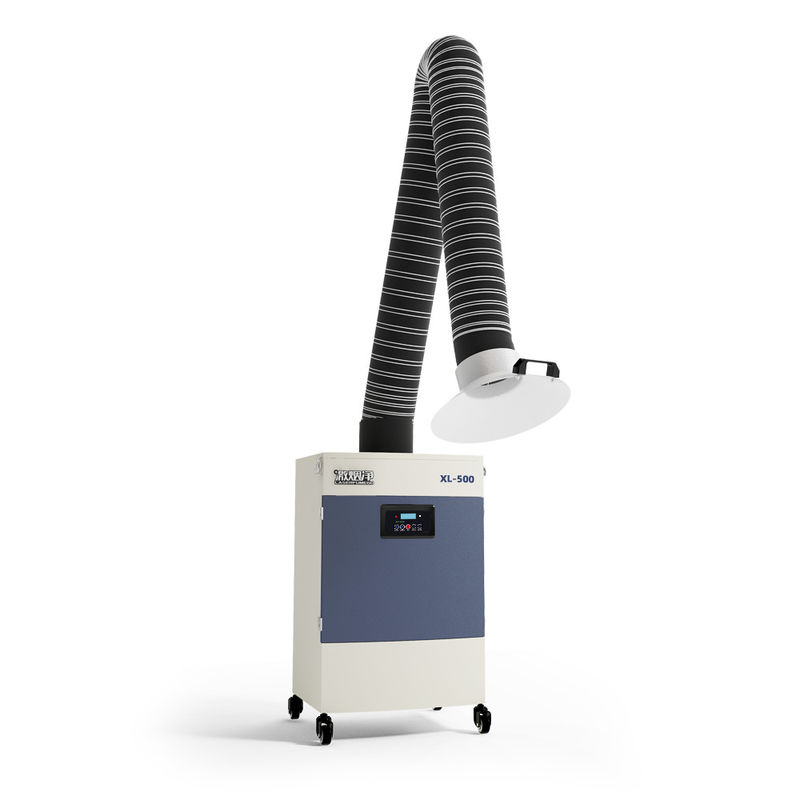

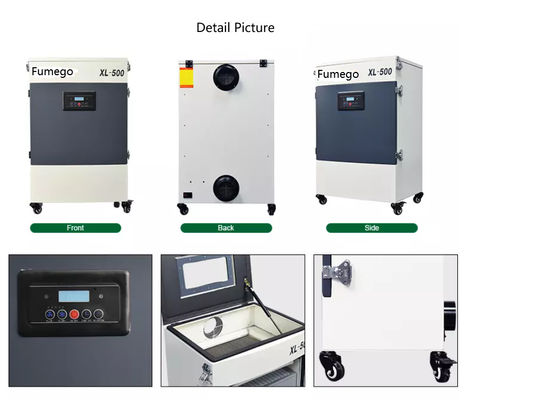

Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof 0

Mobile 500W Laser Dust Collector For Cutting Welding Machine With Explosion Proof Function And Fire Proof 1
