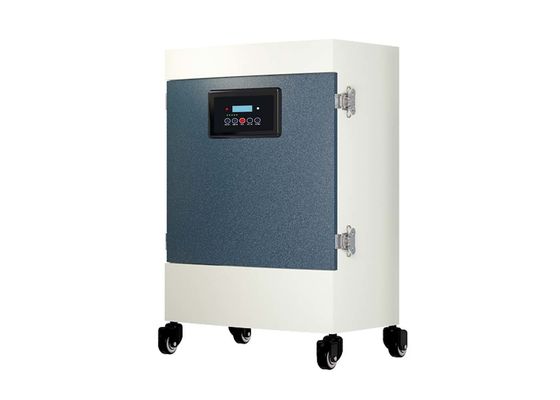

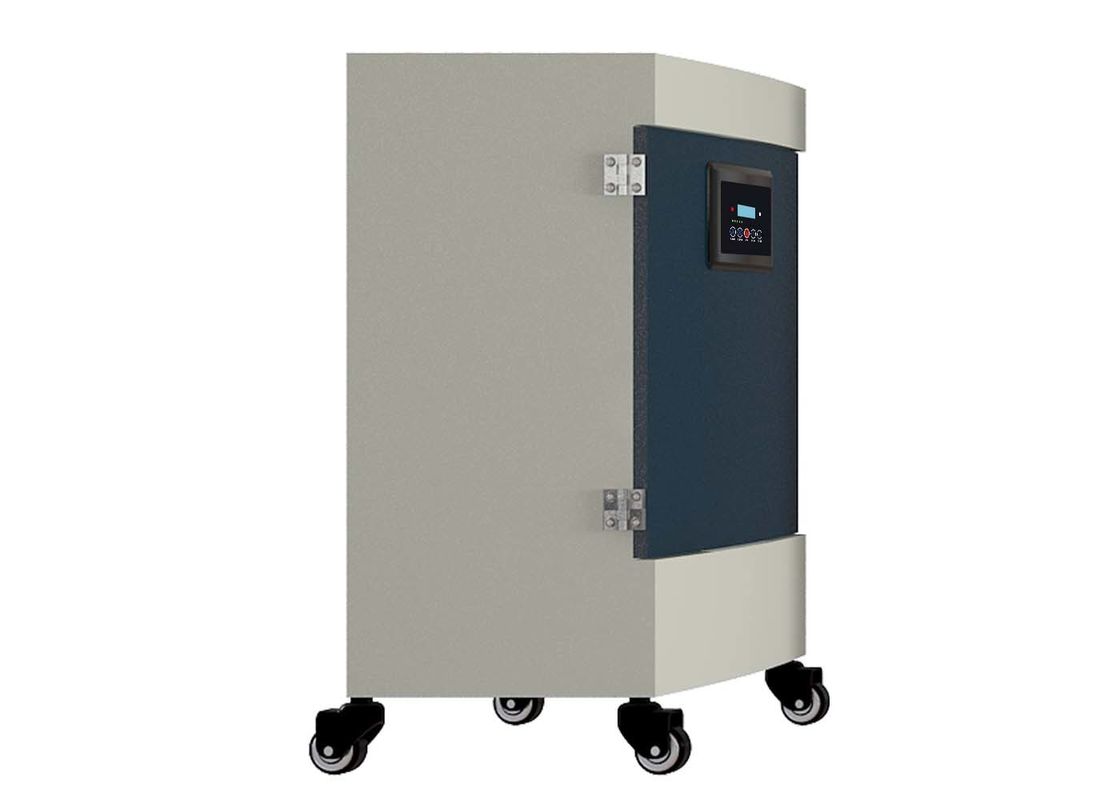

3 Layers Filters 450m3/H Vacuum Fume Extractor For Soldering

3 Layers Filters 450m3/H Vacuum Fume Extractor For Soldering

3 Layers Filters 450m3/H Vacuum Fume Extractor For Soldering
3 Layers Filters 450m3/H Vacuum Fume Extractor For Soldering
3 Layers Filters 450m3/H Vacuum Fume Extractor For Soldering
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
After-sales Service Provided: Online Support, Free Parts Avaliable Power: 330 W
Noise: 59 Db Warranty: 2 Years
Voltage: 220/110 V Application: Laser Marking, Graving, Welding
Material: Mental Shell, Alloy Material Product Name: Laser Fume Extractor
Weight: 36.7 Kg Air Volume: 450 M³/h
High Light:

450m3/H Vacuum Fume Extractor


Soldering Vacuum Fume Extractor


450m3/H Soldering Purification Machine

Welding Smoke Extractor Soldering Purification Machine With 3 Layers Filters






Modle FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg



425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)


protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon


450*380*50mm 450*380*50mm*2 450*380*50mm*2




1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

2, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

3, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

4, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

5, Saving energy and cost, lower noise and larger suction power;



1, The fan speed is adjustable, timing function to turn on and off, and remote control;

2, The machine is in a very small dimension, never occupying space;

3, Portable because it assemble with 4 wheels;

4, The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;





Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.
