| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FL-22-300 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 10pcs per week |
| Application: | SMT, Wave-soldering, Big Laser Cutting, Welding Plant | Noise: | 57 Db |
|---|---|---|---|
| Voltage: | 110/220 V | Material: | Alloy Material Mental Shell |
| Weight: | 130 KG | Type: | Industrial Fume Extractor |
| Air Volume: | 275 M³/h | Keyword: | HNP 22kpa |
| Power: | 1500W | Warrenty: | 2 Years |
| Highlight: | 1.5kw Soldering Fume Extractor,HNP 22kpa Soldering Fume Extractor |
||

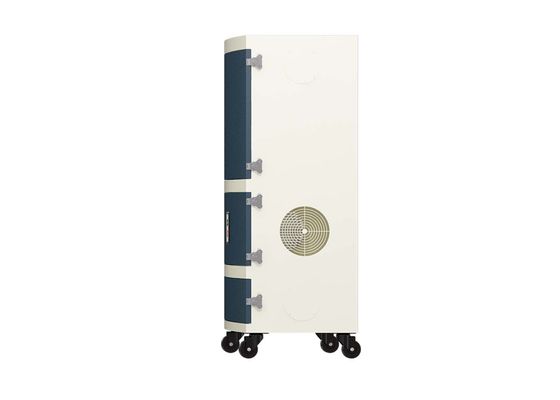

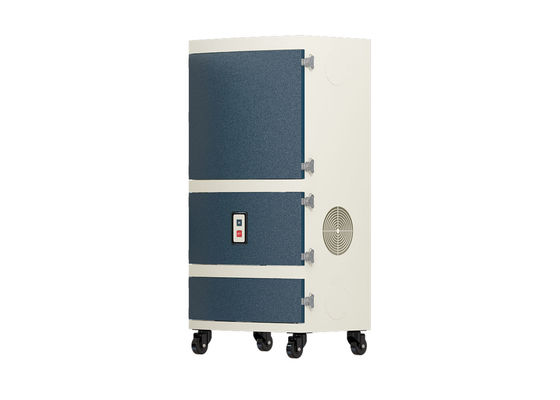

1.5kw Soldering Fume Extractor Welding Smoke Purifier
Instruction:
1, Portable because it assemble with 4 wheels;
2, High negative pressure;
3, The machine is in a very small dimension, never occupying space;
4, No need to assemble, plug and turn it on, start to work;
5, The filter element adopts a return structure and can hold dust on all sides;
Specifications:
| Model | Fume extractor FL-22-300 |
| Dimension | 600*480*1300 mm |
| Voltage | 110V/220V |
| Power | 1500W |
| Air flow | 275 m³/h |
| Weight | 130 kg |
| Noise | 57 db |
| Filters | 4 layers |
| Filters layers | Size and Frequency to replace |
| First layer |
Stainless Steel Fire Protection Network 450*420*80mm |
| Bellows pocket | 420*230mm 22 layers |
| HEPA filter | 450*420*100mm 4-7months |
| 450*420*120mm 4-7months | |
| Air speed | 17m/s |
| HNP | 22kpa |
Application: Soldering, Laser cutting, Marking, Welding, Automatic industrialization.
Advantages:
1, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution;
2, Using noise reduction structure design, to keep working environment quiet;
3, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
4, Assembled with DC brushless motor, which will have more stable performance and longer life.
FAQ:
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power can’t clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Q: Do you do OEM?
A: Yes
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
Pictures:
