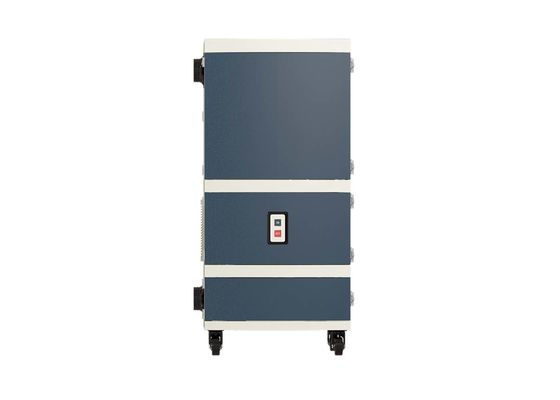

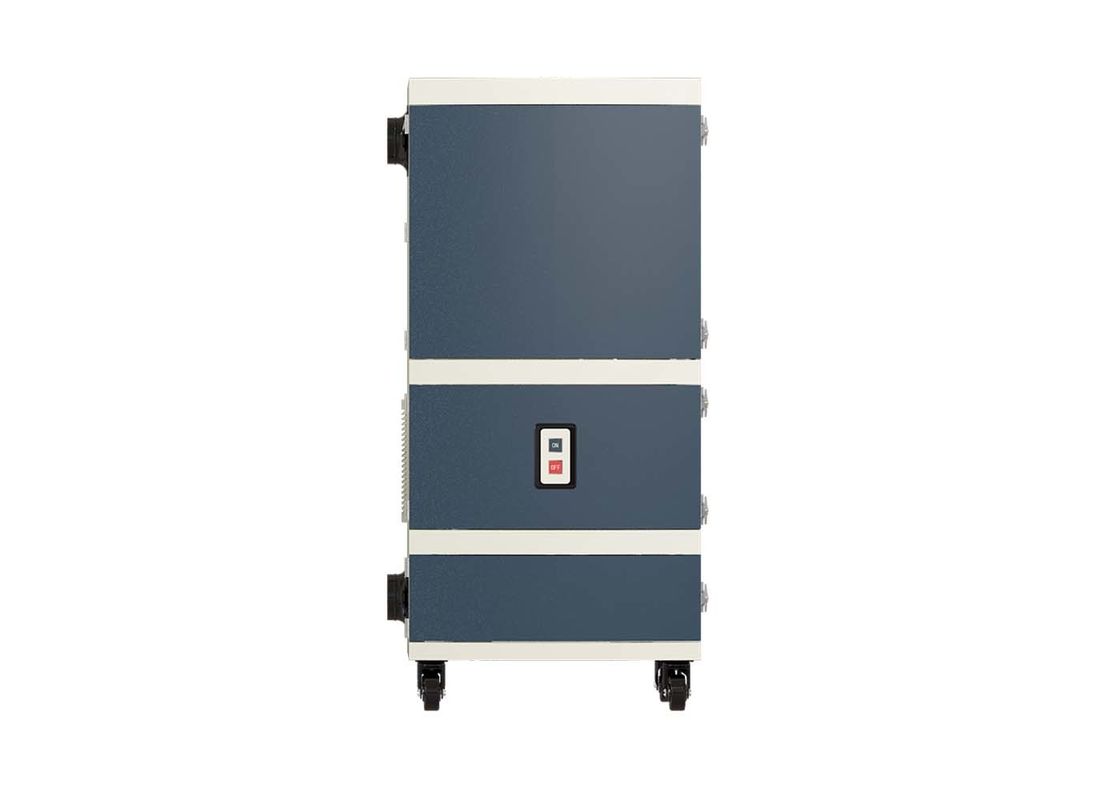

HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor

HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor

  • HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor
  • HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor
  • HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor
HNP 22kpa Portable Welding Extractor 1500W Laser Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL-22-300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Power: 1500W Warranty: 2 Years
Application: SMT, Wave-soldering, Big Laser Cutting, Welding Plant Noise: 57 Db
Voltage: 110/220 V Material: Alloy Material Mental Shell
Weight: 130 KG Type: Industrial Fume Extractor
Air Volume: 275 M³/h Keyword: HNP 22kpa
High Light:

HNP 22kpa Laser Fume Extractor


1500W Laser Fume Extractor


1500W Portable Welding Extractor

Portable Welding Fume Purifier Mobile Extraction System Machine




1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

3, All mental material shell, durable and sturdy;

4, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

5, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution;

6, Using noise reduction structure design, to keep working environment quiet;

7, The fume tube can be randomly rotate, and can be fix in any position;




Model Fume extractor FL-22-300
Dimension 600*480*1300 mm
Voltage 110V/220V
Power 1500W
Air flow 275 m³/h
Weight 130 kg
Noise 57 db
Filters 4 layers
Filters layers Size and Frequency to replace
First layer

Stainless Steel Fire Protection Network


Bellows pocket 420*230mm   22 layers
HEPA filter 450*420*100mm  4-7months
  450*420*120mm  4-7months
Air speed 17m/s
HNP 22kpa



Usage: Laser cutting, Automatic industrialization, Marking, Welding.




1, Portable because it assemble with 4 wheels;

2, High negative pressure;

3, The machine is in a very small dimension, never occupying space;

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides.




Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.
