| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FDL1002 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Name: | Laser Welding Fume Extractor | Type: | With Digital Display |
|---|---|---|---|
| Air Flow: | 150 M³/h*2 | Keyword: | Welding Arm Fume Extractor |
| Power: | 200 W | Noise: | 55 Db |
| Warranty: | 2 Years | Voltage: | 110/220 V |
| Material: | Mental Shell | Weight: | 13 KG |
| High Light: | 200W Industrial Dust Collectors,ROHS Industrial Dust Collectors,ROHS Welding Fume Extractor |
||

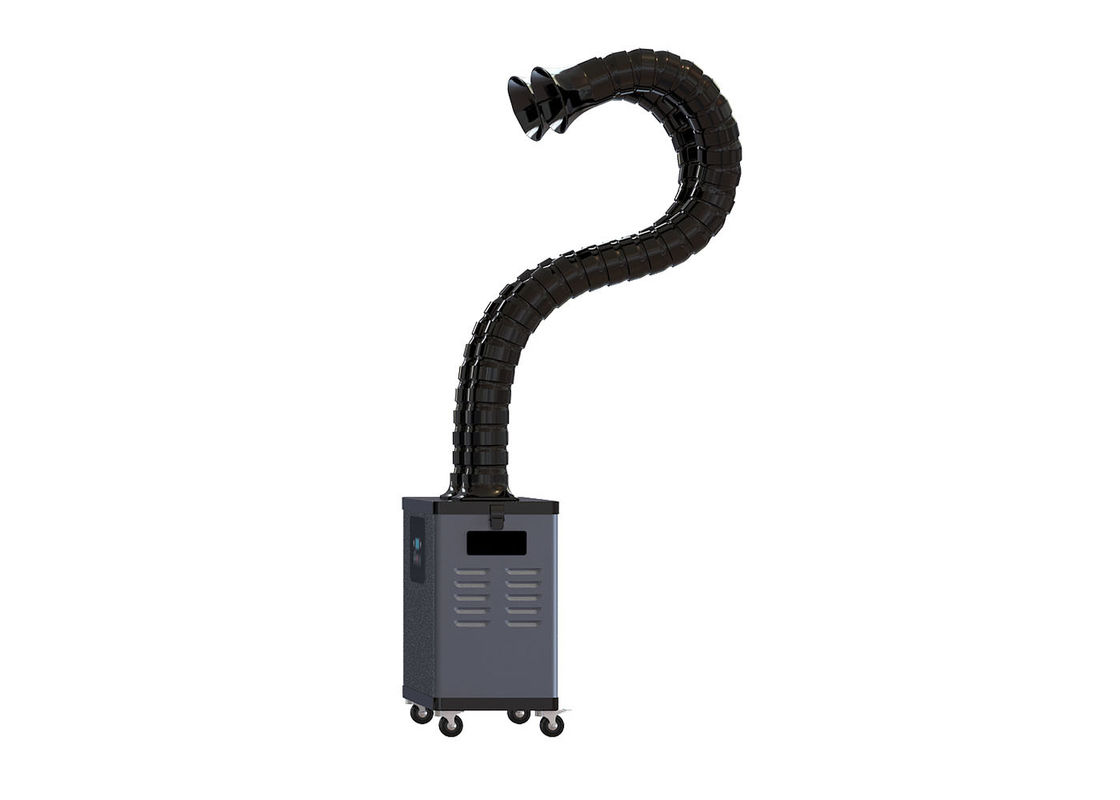

Industrial Dust Collector Welding Fume extractor with industrial Filter
Instruction:
1, The fume tube can be randomly rotate, and can be fix in any position;

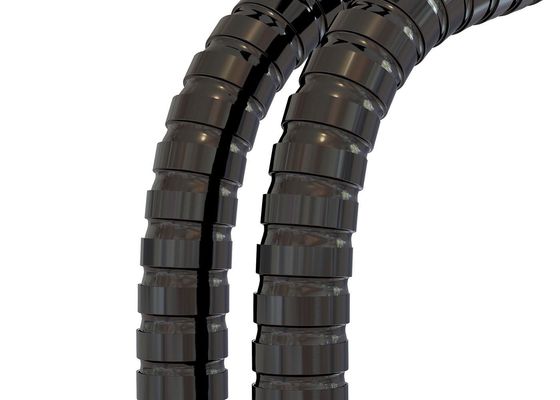

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
2, Assembled with DC brushless motor, which will have more stable performance and longer life;
3, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
4, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
5, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow.
6, Saving energy and cost, lower noise and larger suction power;
7, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
Specifications:
| Model | Fume extractor FDL1002 |
| Power | 200 W |
| Air flow | 150 m³/h * 2 |
| Dimension | 420*245*400 mm |
| Voltage | 110/220 V |
| Noise | 55 db |
| Weight | 13kg |
| Filters | 3 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 360*170*55 mm 3-6 months |
| HEPA filter | 385*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
Features:
1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
2, All mental material shell, durable and sturdy;
3, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.
4, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
5, Using noise reduction structure design, to keep working environment quiet.
FAQ:
Q: Where is your factory?
A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.
Q: What is your advantage compared with other factory?
A: Lower cost of usage, save power,and more competitive price.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: How long is needed for manufacture?
A: It always be about 3-7days, big quantity need to discuss.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
