55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable

55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable

55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable
55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable
55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Weight: 13 Kg Name: Laser Welding Fume Extractor
Type: With Digital Display Air Flow: 150 M³/h*2
Keyword: Welding Arm Fume Extractor Power: 200 W
Noise: 55 Db Warranty: 2 Years
Voltage: 110/220 V Material: Mental Shell
High Light:

150m3/H Mobile Welding Fume Extraction Unit

,

55dB Mobile Welding Fume Extraction Unit

,

150m3/H Welding Fume Extraction Units

Double Arms Fume Extractor Laser Smoke Welding Smoke Absorber





Instruction:

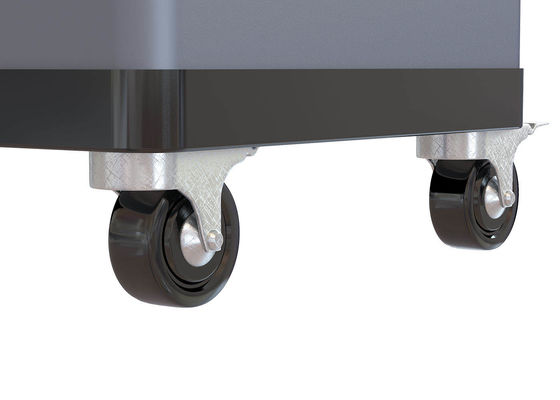

1, Portable because it assemble with 4 wheels;

2, High negative pressure;

3, The machine is in a very small dimension, never occupying space;

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;



Specifications:



Model Fume extractor FDL1002
Power 200 W
Air flow 150 m³/h * 2
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 55 db
Weight 13kg
Filters 3 layers
Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine and Soldering robot





Features:



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

3, Saving energy and cost, lower noise and larger suction power;

4, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

5, It is also a dust collector, bad smell remover, and fire proof;



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.



Product picture:

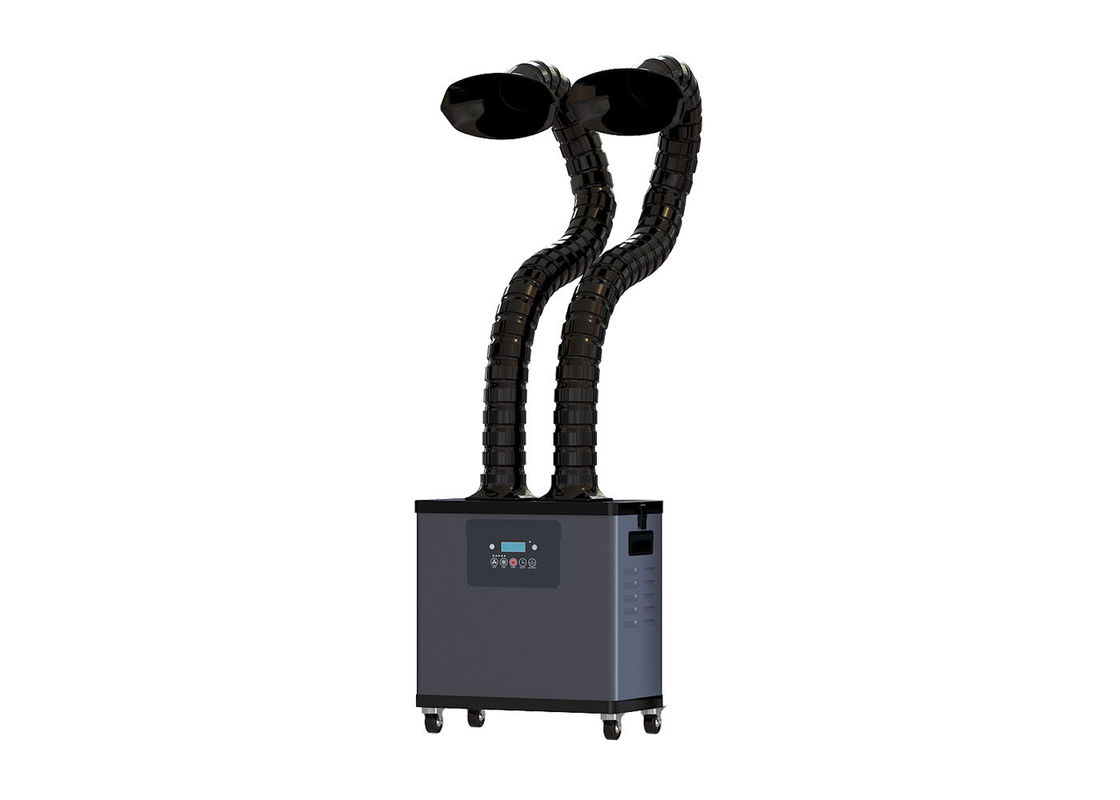

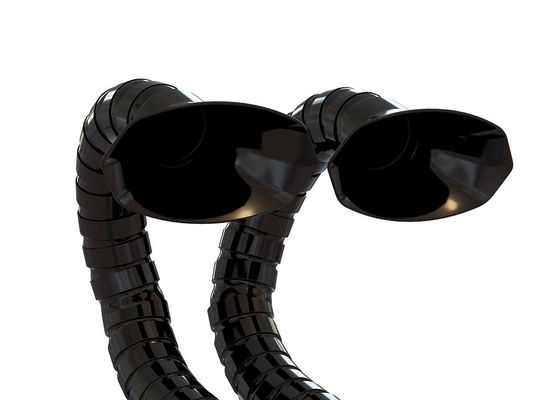

55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable 0

55dB 150m3/H Mobile Welding Fume Extraction Unit Fan Speed Adjustable 1
