Small Dimension 80W Suction Dust Collector Sturdy Shell

Small Dimension 80W Suction Dust Collector Sturdy Shell

Small Dimension 80W Suction Dust Collector Sturdy Shell
Small Dimension 80W Suction Dust Collector Sturdy Shell
Small Dimension 80W Suction Dust Collector Sturdy Shell
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
Warranty: 2 Years Weight: 12 Kg
Application: Manual Soldering Material: Mental Body Shell
Air Volume: 235 M³/h Voltage: 110V/220V
Keyword: Soldering Fume Extractor Color: Grey With Black
Power: 80W Noise: 52 Db
High Light:

80W Suction Dust Collector


Small Dimension Suction Dust Collector


80W Pure Air Fume Extractor

Pure Air Fume Extractor Double Flexible Extraction Arms Dust Fume Extractor System





1, Layers of different filters, clean air fasters and more efficient;

    Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, All mental material shell, durable and sturdy;

3, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

4, Our machine can maximize to use the filters;

    We are using different layers filters to collect different size level of pollution.

5, The fume tube can be randomly rotate, and can be fix in any position;

    We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.




Model Fume extractor FDL1001
Power 80 W
Air flow 235 m³/h
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 52 db
Weight 12 kg
Filters 3 layers
Size and Frequency to replace Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine




1, Assembled with DC brushless motor, which will have more stable performance and longer life;

2, It will alarm when the filters is out of service;

    People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

4, Imported integrated AC fan, stable performance and longer life;

5, The machine is in a very small dimension, never occupying space;

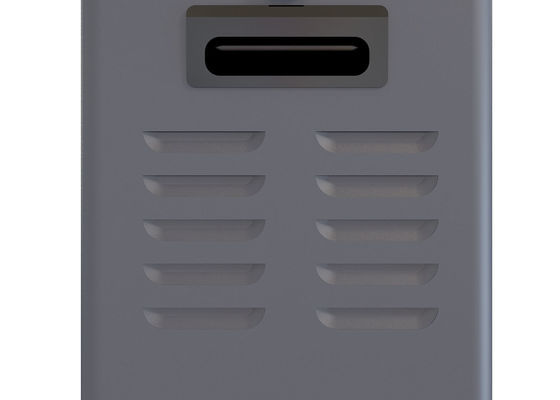

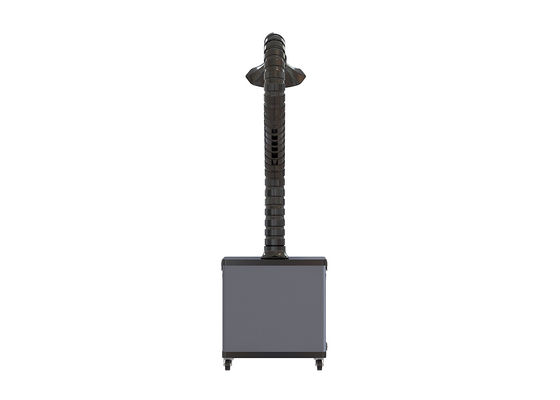

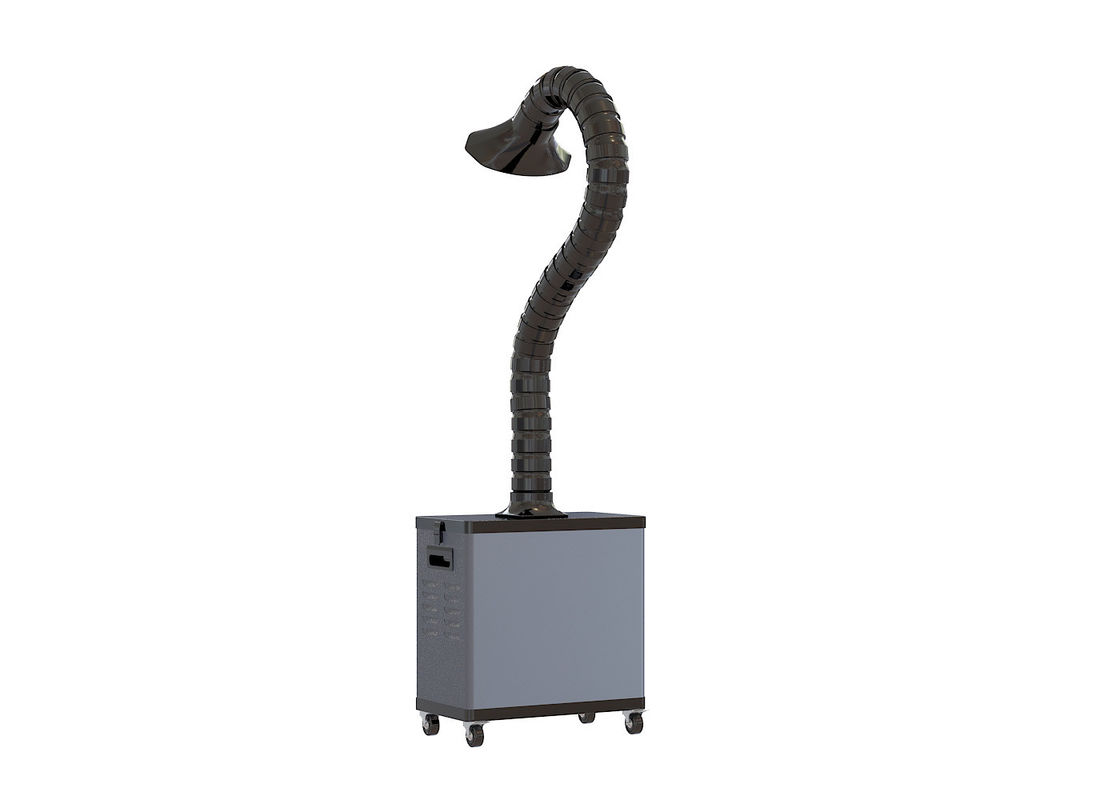

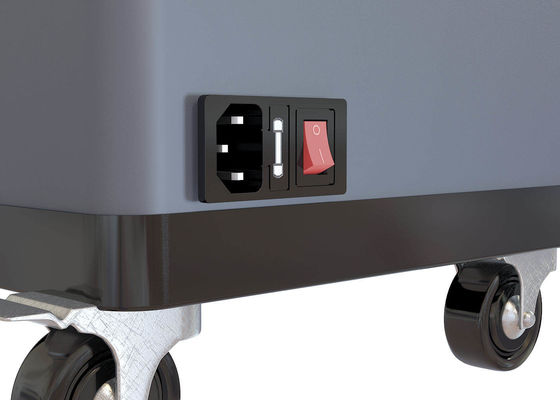

Product picture:


Small Dimension 80W Suction Dust Collector Sturdy Shell 0

Small Dimension 80W Suction Dust Collector Sturdy Shell 1




Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.
