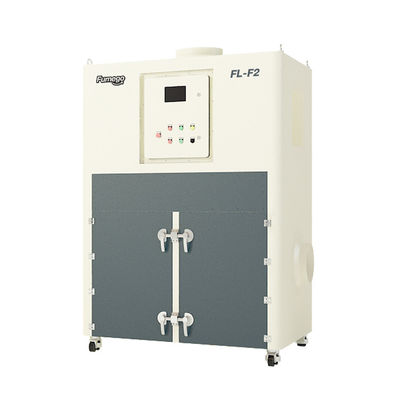

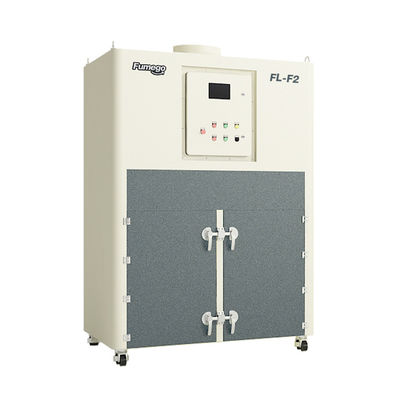

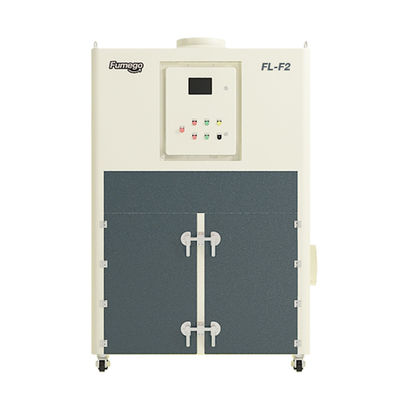

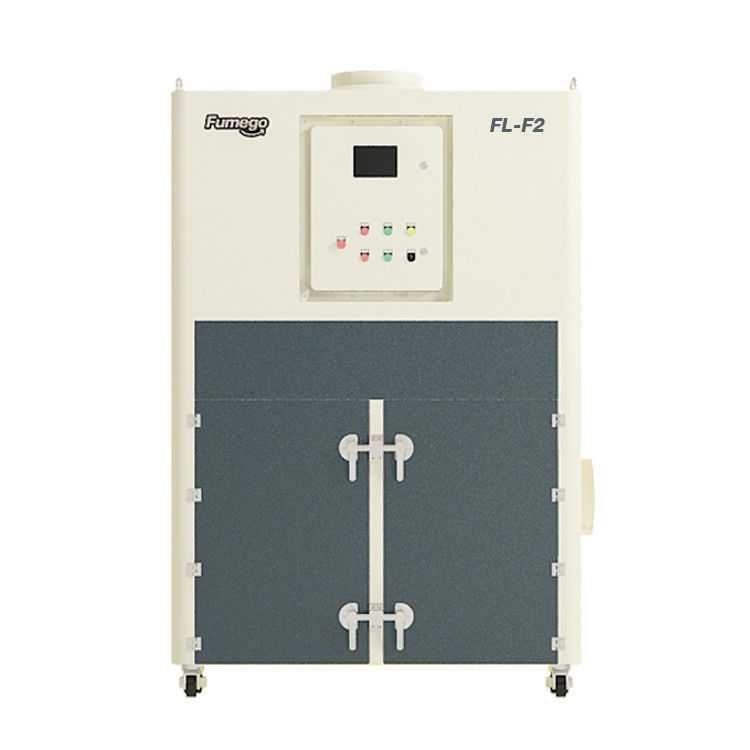

Durable Smoke Absorber Machine 380V 50HZ Laser Fume Extractor

Durable Smoke Absorber Machine 380V 50HZ Laser Fume Extractor

Durable Smoke Absorber Machine 380V 50HZ Laser Fume Extractor
Durable Smoke Absorber Machine 380V 50HZ Laser Fume Extractor
Durable Smoke Absorber Machine 380V 50HZ Laser Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL-F2
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Keyword: Backblow Fuction Air Flow: 3000 M³/h
Color: Grey And White Type: Industrial
Power Supply: 380 V 50 HZ Weight: 540 Kg
Application: Soldering, Big Laser Cutting, Welding Plant Warranty: 2 Years
Noise: 70 Db Power: 2200 W
High Light:

50HZ Laser Fume Extractor


380V Smoke Absorber Machine


50HZ Smoke Absorber Machine

Durable Filtering Laser Fume Extractor Smoke Absorber Cutting Machine





1.  Active carbon filter to remove bad smells, and UV lamp to kill bacterials and virus;

2.  Dust remove filters, remove harmful gas;

3.  Pulse jet cleaning system, makes longer life of 4 layers of filters

4.  Smooth operation, large air absorption

5.  Mental body structure, strong and durable;

     Mental shell body and wheels with brake, ensure the machine looks better and convenient to move.




Model Fume extractor FL-F2
Dimension 1176*866*1990 mm
Voltage 380V 50HZ
Power 2200W
Air flow 3000 m³/h
Weight 540 kg
Noise 70 db
Filters 4 layers
Filters layers Size and Frequency to replace
Fire and explosion proof 2 layers 320*240*600 mm  3-6 months
HEPA and active carbon filter 592*541*45mm  6-12 months
Air speed 17m/s
HNP 2600 pa


Application: Big soldering and laser cutting machine.

UV lamps: 3 pcs 100W UV lamps, more than 9000 hours life time.




1.  Assemble with 3 pcs UV lamp to kill bacterial and virus;

2.  Triple-filter design ensures thorough Purification, 99.99% filter rate; And it can be replaced very easily and convenient;

3.  The machine can remove smoke, bad smells and dusts, multi-function;

4.  High quality fan motor, achieve great suction power;

5.  DC brushless motor with stable performance and long life.




Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power can’t clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
