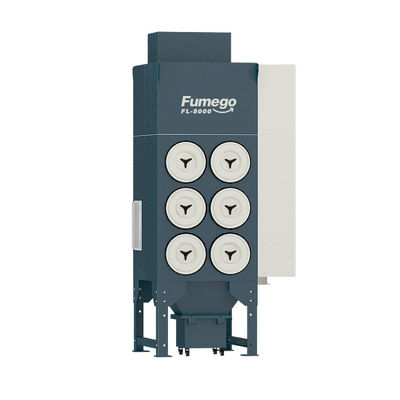

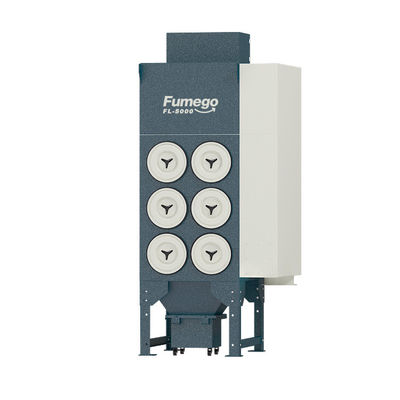

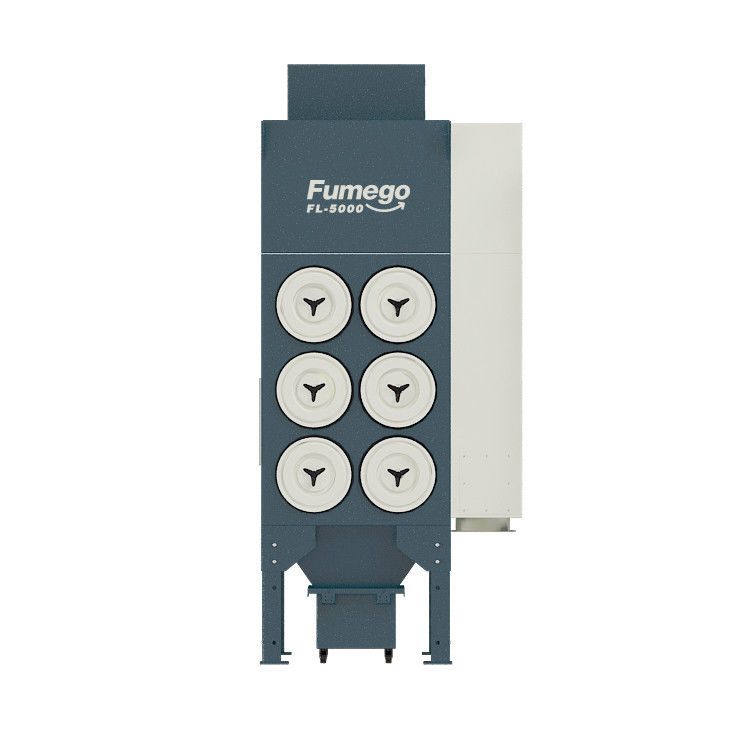

Large Flow Rate 5000m3/h Mobile Fume Extractor For Laser Cutting

Large Flow Rate 5000m3/h Mobile Fume Extractor For Laser Cutting

Large Flow Rate 5000m3/h Mobile Fume Extractor For Laser Cutting
Large Flow Rate 5000m3/h Mobile Fume Extractor For Laser Cutting
Large Flow Rate 5000m3/h Mobile Fume Extractor For Laser Cutting
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL5000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 10pcs per week
Contact Now
Detailed Product Description
Power: 7500 W Warranty: 2 Years
Application: Laser Cutting And Soldering Voltage: 380V/ 50 HZ
Noise: 76 Db Weight: 880 Kg
Type: Fume Extractor Air Volume: 5000 M³/h
Keyword: HNP System: Pulse Jet Cleaning System
High Light:

5000m3/H Mobile Fume Extractor


7500W Mobile Fume Extractor


5000m3/H Smoke Absorber Machine

High Negative Pressure Laser Fume Purifier Extractor Smoke Absorber Machine





1. Multi-layers filters work together, purify air faster and cleaner;

    Our product combine 7 layers of filters, Dust absorber, fume extractor, bad smell remove functions.

2. Mental body structure, strong and durable;

    Mental shell body and wheels with brake, ensure the machine looks better and convenient to move.

3. Pulse jet cleaning system, which make filters longer life and higher effecient;

4. Assembled with spark catch system, ensure fire and explosion proof capacity;

5. Higher quality, longer life, and larger capacity of high negative pressure.




Model Fume extractor FL5000
Dimension 1400*1280*3245 mm
Voltage 380V 50HZ
Power 7500W
Air flow 5000 m³/h
Weight 880 kg
Noise 76 db
Filters 7 layers
Filters layers Size and Frequency to replace
Fire and explosion proof 6 layers 324*213*660 mm  3-6 months
HEPA and active carbon filter 660*523*200 mm  6-12 months
Air speed 18 m/s
HNP 3000 pa


Application: Big soldering and laser cutting machine




1.  Explosion and fire proof filter, working situation is safer;

2.  Larger air volume, longer life of filter, more effecient;

3.  Dust collector, Fume extractor, and harmful smells remove, 3 in 1 machine;

4.  The model import from Japan, more stable and safe working rate, longer life;

5.  Easy to replace the filters, and easy to operation.




Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes
