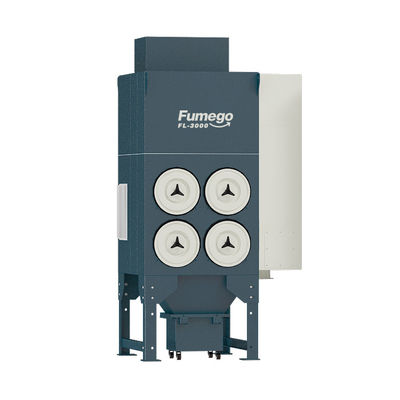

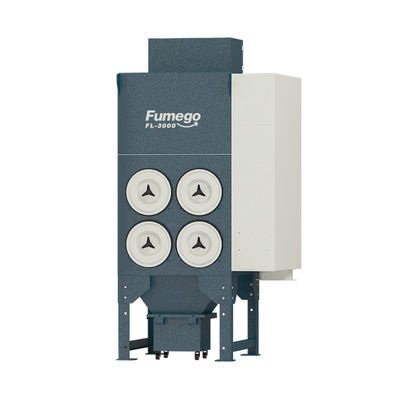

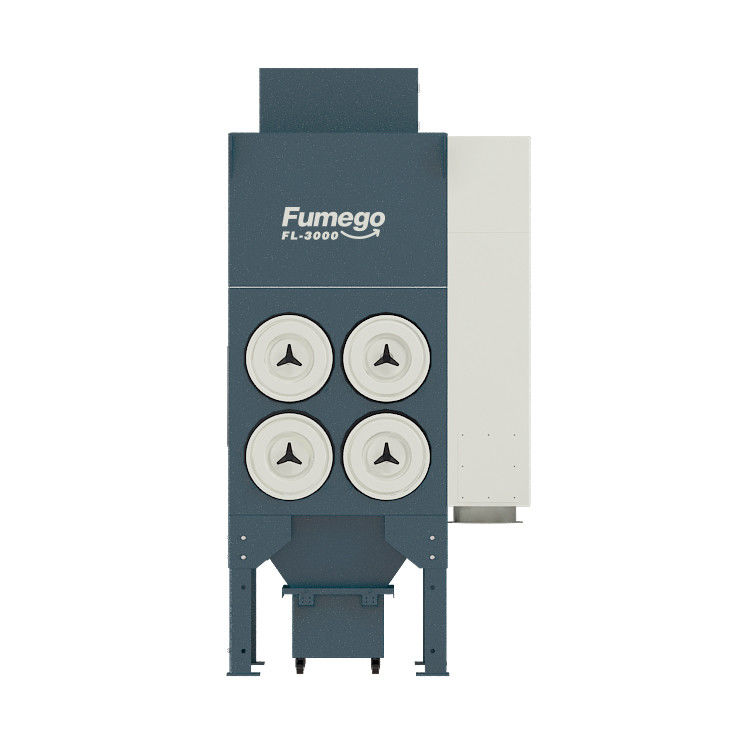

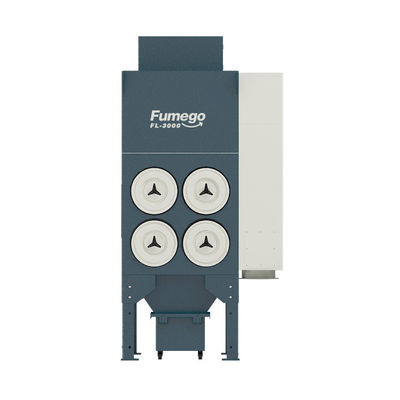

High Negative Pressure 380V 5500W Laser Fume Extractor

High Negative Pressure 380V 5500W Laser Fume Extractor

  • High Negative Pressure 380V 5500W Laser Fume Extractor
  • High Negative Pressure 380V 5500W Laser Fume Extractor
  • High Negative Pressure 380V 5500W Laser Fume Extractor
High Negative Pressure 380V 5500W Laser Fume Extractor
Product Details:
Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL3000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Contact Now
Detailed Product Description
After-sales Service Provided: Online Support Noise: 76 Db
Voltage: 380V/ 50 HZ Application: SMT, Wave-soldering, Big Laser Cutting, Welding Plant
Warranty: 2 Years Weight: 760KG
Keyword: HNP Air Volume: 3000 M³/h
Power Supply: 5500W Type: Industrial
High Light:

380V Laser Fume Extractor


5500W Laser Fume Extractor


5500W Smoke Absorber Machine

High Negative Pressure Laser Fume Purifier Extractor Smoke Absorber Machine





1. Dust collector, and filters to remove bad smells, fire and explosion proof and Fume extractor,4 in 1 machine;

2. High Negative pressure, and high power, High suction air volume;

3. Alloy material motor, anti-corrosion, stable and reliable operation, larger air volume;

4. Multi-layers filters work together, purify air faster and cleaner;

    Our machine combine HEPA filters and layers of active carbon filters, and pre-filters to make outlet air 300-500 times cleaner than normal air,        and clear more than 96% bad and harmful smells.

5. Noise reduction design, quiet operation




Model Fume extractor FL3000
Voltage 380V
Dimension 1400*1280*2600 mm
Air flow 3000 m³/h
Power 5500W
Noise 76 db
Filters 5 layers
Weight 760 kg
Filters layers Size and Frequency to replace
Fire and explosion proof 324*213*660 mm  3-6 months
HEPA and active carbon filter 660*523*200 mm  6-12 months
HNP 3000 pa
Air speed 12 m/s


Usage: Big machine laser cutting and soldering



1. Easy to replace the layers filters, and it can use the filters in most efficient rate

2. High quality fan motor, achieve great suction power

3. The motor was import from Japan to ensure the power system works in a very good situation

4. The machine can remove smoke, bad smells and dusts, fire and explosion proof

5. High quality, long life and High negative pressure




Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power can’t clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
