76db Industrial Dust Collectors

76db Industrial Dust Collectors
76db Industrial Dust Collectors

Large Image :  76db Industrial Dust Collectors

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL3000

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Noise: 76 Db Voltage: 380V/ 50 HZ
Application: SMT, Wave-soldering, Big Laser Cutting, Welding Plant Warranty: 2 Years
Weight: 760KG Keyword: HNP
Air Volume: 3000 M³/h Power Supply: 5500W
Type: Industrial Aftersales Service: Online Support
High Light:

76 db Industrial Dust Collectors

,

3000 m3/h Industrial Dust Collectors

,

5500W Woodworking Dust Collectors

Woodworking Industrial Dust Collector For Big Power Laser Equipment With Pulse Jet Back Belowing Self Cleaning System





Advantages:



1, Pulse back blowing function

2, High quality, long life, high negative pressure

3, Large flow rate, long service life of filter element and good filtering effect

4, Metal frame body structure, durable

5, Pulse back blowing function, longer service life of filter element

6, Stable and reliable operation, large suction air flow

7, Dust collection and filtration, fume filtering

8, Active carbon deodorization,

9, Flame retardant filter cartridge.



Specifications:



Specifications

Power(w) 5500

Dimension mm(l*w*h)

1400*1280*2600mm
Air Flow(m3/h) 3000
Noise level (db) <76
Voltage(v) AC380V/220/50Hz/60hz 3phse
No load sped(r/min) 2950
Single port speed(m/s) 12
Weight(kg) 760
Negative Pressure(pa) 3000





Consumption filters

(P)filter layers 5

inner machine

Replace time

Flame retardant carltridges *4
324*213*660 3-6 months

inner machine

Replace time

Active carbon filters

660*523*200mm 6-12 months



Instruction:



1, The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

2, Imported integrated AC fan, stable performance and longer life;

3, Portable because it assemble with 4 wheels;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;

7, The filter element adopts a return structure and can hold dust on all sides;

8, The fan speed is adjustable, timing function to turn on and off, and remote control;



FAQ:



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life. We have 8 years after-sales warranty.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.



Pictures:

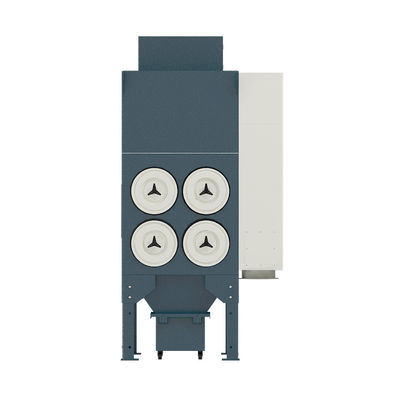

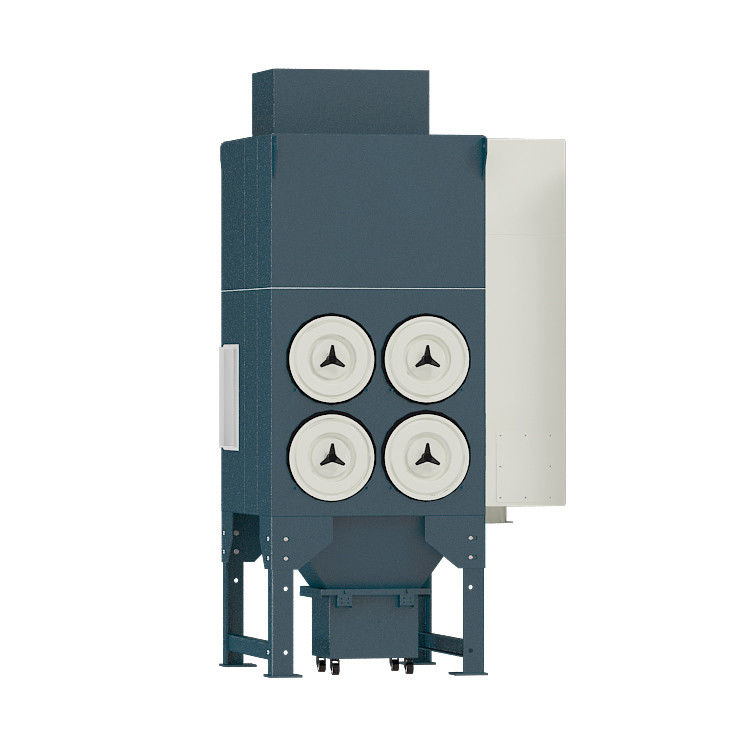

76db Industrial Dust Collectors 0

76db Industrial Dust Collectors 1
