5800r/Min Desktop Mini Solder Fume Extractor

5800r/Min Desktop Mini Solder Fume Extractor
5800r/Min Desktop Mini Solder Fume Extractor

Large Image :  5800r/Min Desktop Mini Solder Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: TF-300

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Noise: 52~57~59 Db Warranty: Two Years
Dimension: 300*270*300mm Application: Soldering, Welding
Air Flow: 75/100/110 M3/H Weight: 4.5kg
Voltage: 110/220 V Power: 35/60/80W
Filter: Two Layers
High Light:

5800r/Min Solder Fume Extractor

,

Fumego Qubo Solder Fume Extractor

Flexible Soldering Fume Extractor For Work Table With Bamboo Shape Tube





Features:



1, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;

2, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

3, Assembled with DC brushless motor, which will have more stable performance and longer life;

4, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

5, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

6, Portable because it assemble with 4 wheels;

7, No need to assemble, plug and turn it on, start to work;



Instructions:



Power(W) 35/60/80
Dimension(mm) 300*270*300
Air Flow(m3/h) 75/100/110
Noise(db) <52/57/59
Voltage 110/220
No-load speed(r/min) 5800
Wind speed(M/S) 17
Weight(kg) 4.5
Negative pressure(pa) 1000-2000


Advantages:



1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

2, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

5, The machine is in a very small dimension, never occupying space;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.



Product pictures:

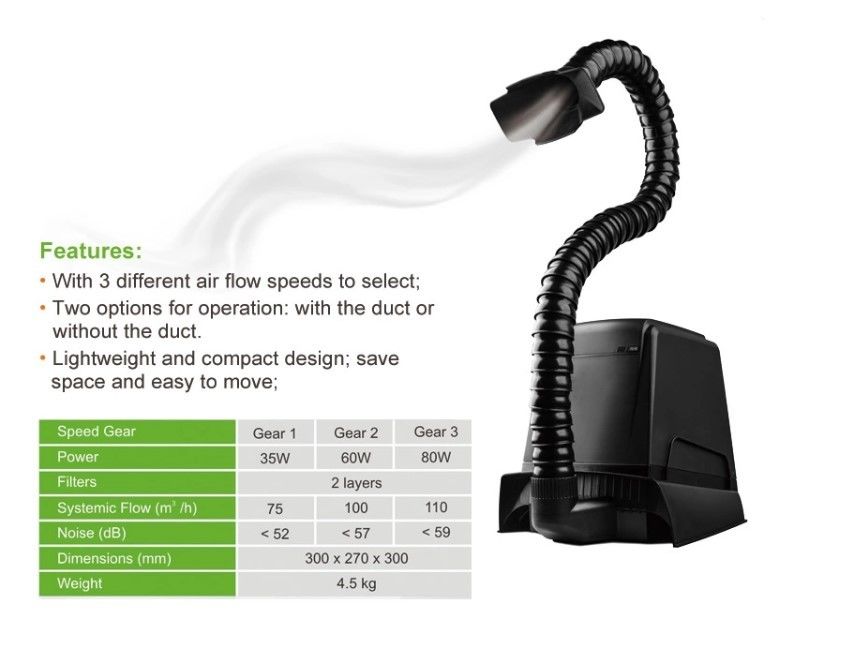

5800r/Min Desktop Mini Solder Fume Extractor 0

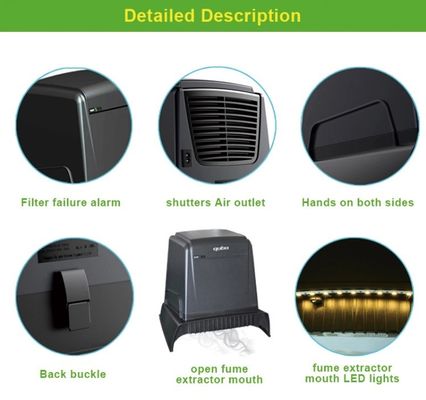

5800r/Min Desktop Mini Solder Fume Extractor 1

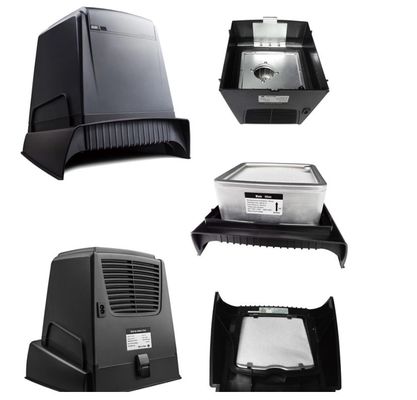

5800r/Min Desktop Mini Solder Fume Extractor 2
