| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | Q200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Weight: | 12 Kg | Voltage: | 110/220 V |
|---|---|---|---|
| Noise: | <62db | Warranty: | Two Years |
| Application: | Marking Heat Gun Welding | Dimension: | 340*265*480mm |
| Filter: | 2 Layers | Power: | 150 W |
| Air Flow: | 2*143 M3/H | ||
| Highlight: | 2000pa Nail Salon Fume Extractor,62db Nail Salon Fume Extractor |
||
Laser Engraving Welding Cutting Fume Extractor Machine Portable Noise Canceling lightweight machine
Features:
1 Durable mental frame structure
2 Multiple filtration design,rapid purification
3 Replaceable efficient filter
4 Noise canceling design,quieter working place
5 Universal smoking arm,easy to operate
Instructions:
| Power(W) | 150 |
| Dimension(mm) | 340*265*480 |
| Air Flow(m3/h) | 2*143 |
| Noise(db) | <62 |
| Voltage | 110/220 |
| No-load speed(r/min) | 4500 |
| Wind spped(m/s) | 2*12 |
| Weight(kg) | 12 |
| Negative pressure(pa) | 2000 |
Advantages:
1Activated carbon deodorization,UVlight sterilization
2 Multilayer filter design,make sure more thorogh purification
3 Noise canceling design,quieter working place
4 Replaceable efficient filter
5 Durable mental frame structure
6 Brushless DC moter,stable long service life
FAQ:
Q:How does it work?
A:Physical principle: interception → activated carbon adsorption → clean air through layers of filters
Q:What is the approximate life of the product in continuous operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q:What are the diameter specifications of smoking pipe?
A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.

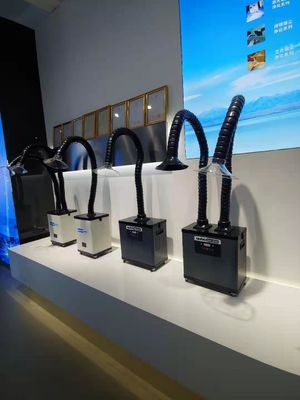

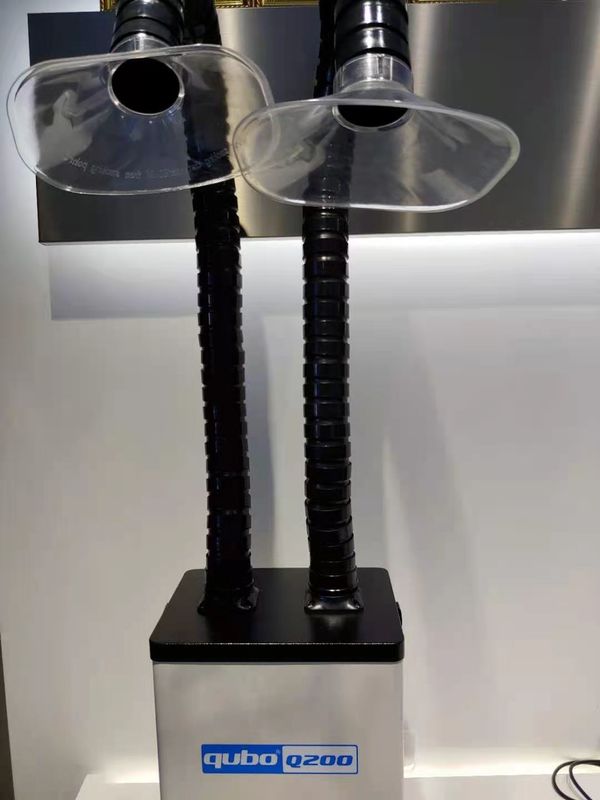

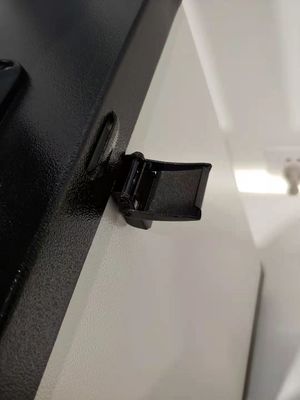

Product part picture:
