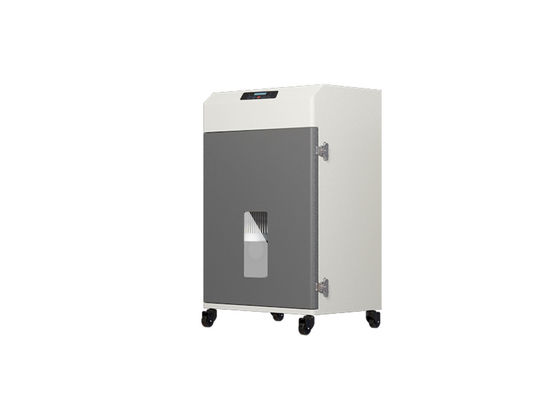

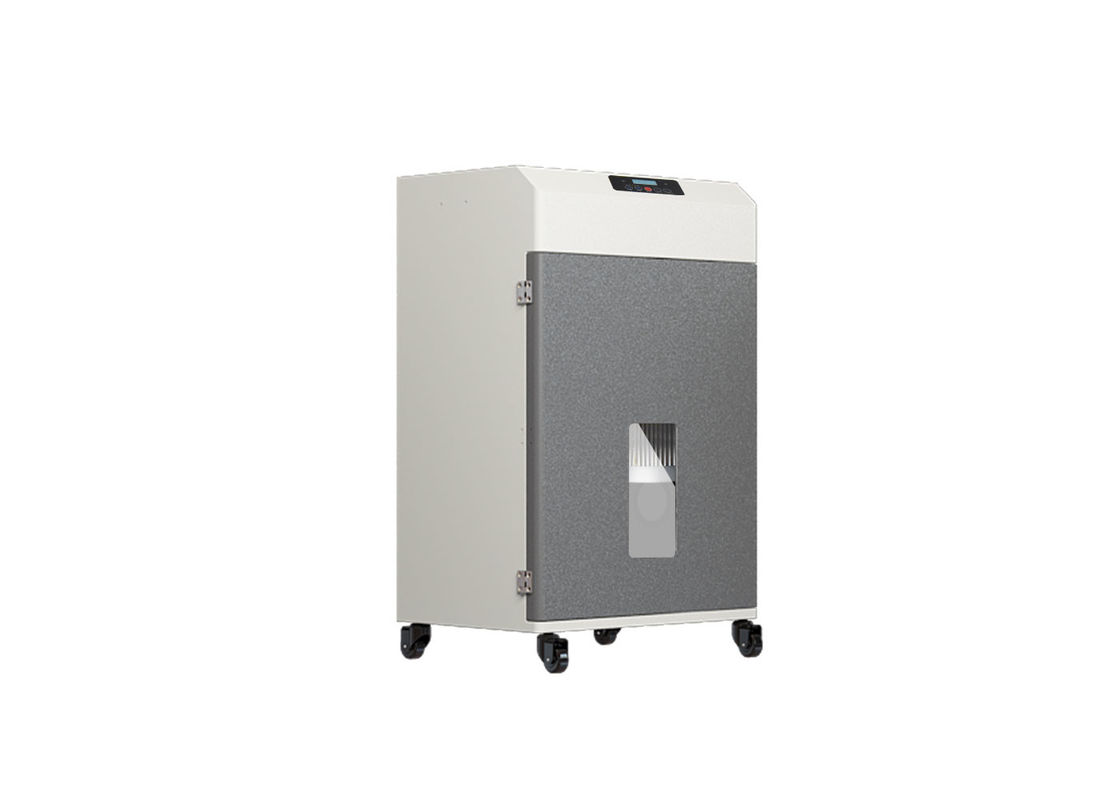

AC220V Laser Marking Engraving Wooden Working Dust Fume Extractor

AC220V  Laser Marking Engraving Wooden Working Dust Fume Extractor
AC220V  Laser Marking Engraving Wooden Working Dust Fume Extractor

Large Image :  AC220V Laser Marking Engraving Wooden Working Dust Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-480

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Weight: 42kg Voltage: 110/220 V
Noise: 70 Db Air Flow: 480 M3/H
Dimension: 550*415*920mm Power: 350W
Application: Soldering, Big Laser Cutting, Welding Plant Material: Mental Shell
Warranty: 2 Years Filter: PET Roller Filter
High Light:

PET Filter Laser Fume Extractor

,

AC220V Laser Fume Extractor

Laser Citrons Welding Fume Extractor Arms Dust For Repair Mobile Phone





Features:



1, The fan speed is adjustable, timing function to turn on and off, and remote control;

2, The machine is in a very small dimension, never occupying space;

3, Imported integrated AC fan, stable performance and longer life;

4, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

5, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.



Instructions:



Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2


Advantages:



1, The filter element adopts a return structure and can hold dust on all sides;

2, High negative pressure;

3,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

4, Saving energy and cost, lower noise and larger suction power;

5, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: How long will the machine keep work?

A: At least 8 years.

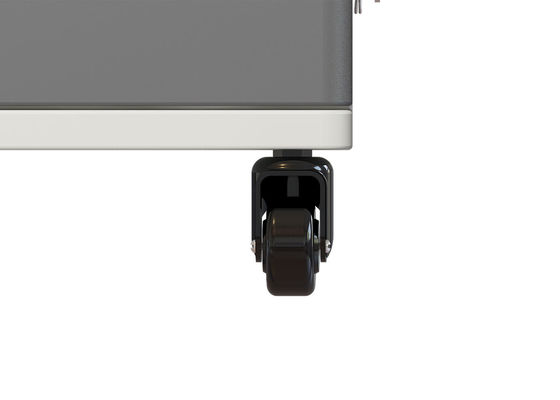

Product part picture:



AC220V  Laser Marking Engraving Wooden Working Dust Fume Extractor 0
