450W Woodworking Dust Collector Fume Extractor

China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

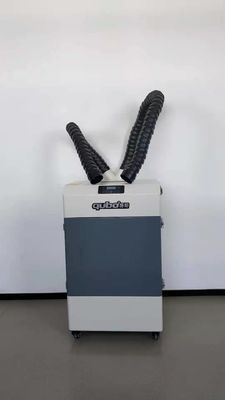

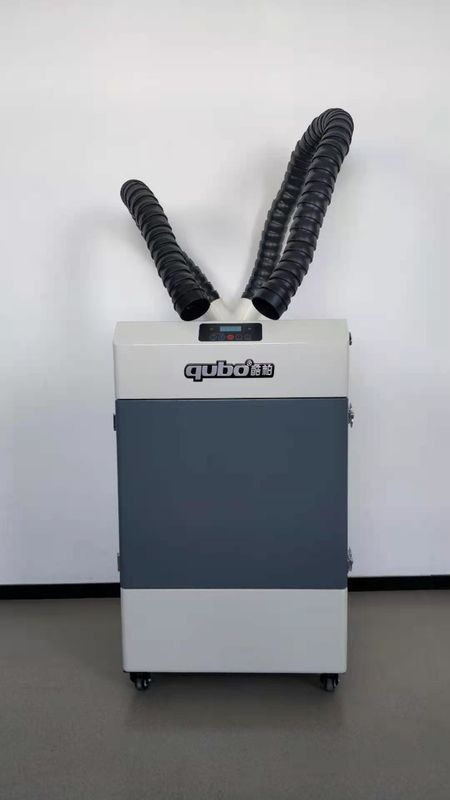

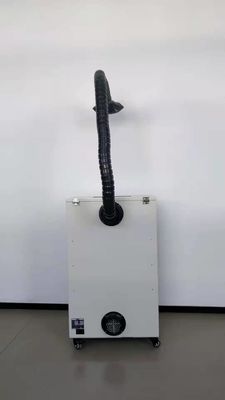

450W Woodworking Dust Collector Fume Extractor

450W Woodworking Dust Collector Fume Extractor
450W Woodworking Dust Collector Fume Extractor

Large Image :  450W Woodworking Dust Collector Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Air Flow: 700 M3/H Dimension: 550*440*885mm
Power: 450 W Application: Soldering, Big Laser Cutting, Welding Plant
Material: Mental Shell Warranty: 2 Years
Filters: 5 Layers Weight: 60kg
Noise: 70 Db Voltage: 110/220 V
High Light:

450W Woodworking Dust Filter


220V Woodworking Dust Filter


450W Industrial Dust Collectors For Woodworking

Fume Extractor Woodworking Collector BBQ Grill With Customized Hood





1, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

2, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

3, Assembled with DC brushless motor, which will have more stable performance and longer life;

4, All mental material shell, durable and sturdy;

5, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

6, Our machine can maximize to use the filters;




Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg



425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)


protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon


450*380*50mm 450*380*50mm*2 450*380*50mm*2



1, The fan speed is adjustable, timing function to turn on and off, and remote control;

2, No need to assemble, plug and turn it on, start to work;

3, Portable because it assemble with 4 wheels;

4, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

5, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;




Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes


Product part picture:


450W Woodworking Dust Collector Fume Extractor 0
