700M3/H Mobile Lasar Engraving Marking Fume Extractor

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

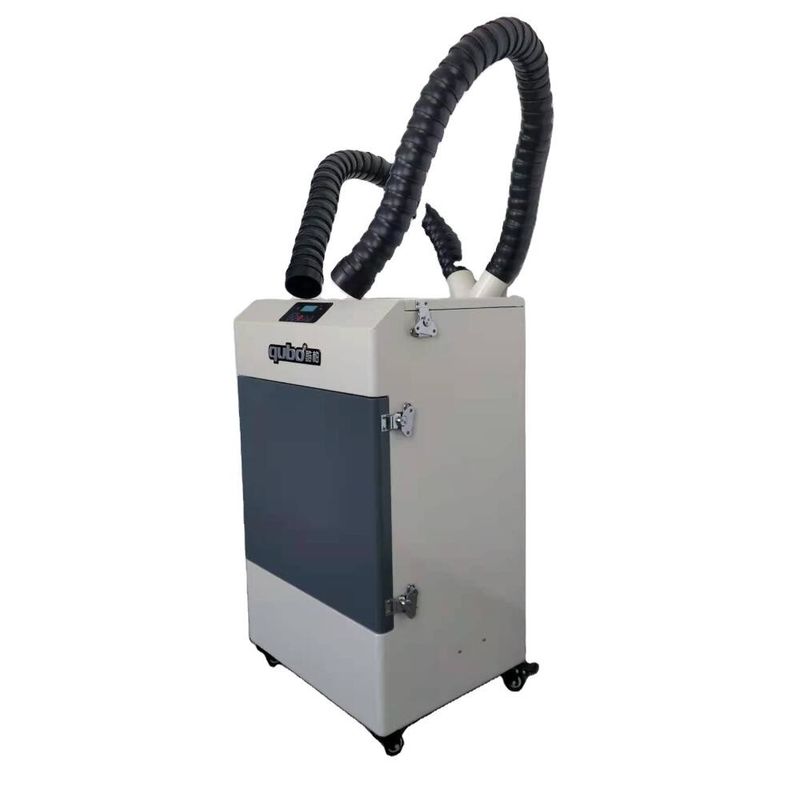

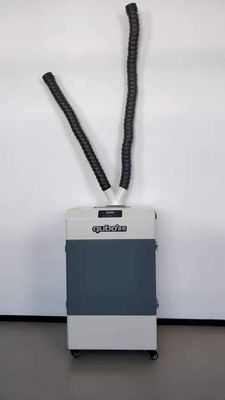

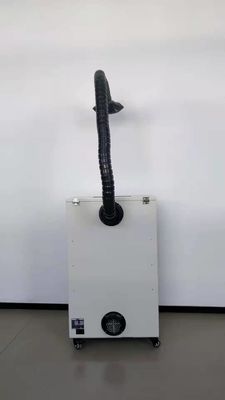

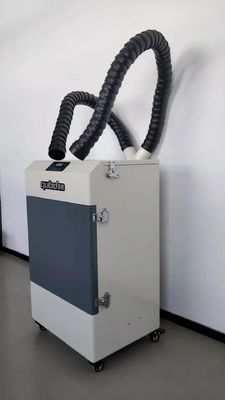

700M3/H Mobile Lasar Engraving Marking Fume Extractor

700M3/H Mobile Lasar Engraving Marking Fume Extractor
700M3/H Mobile Lasar Engraving Marking Fume Extractor

Large Image :  700M3/H Mobile Lasar Engraving Marking Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Voltage: 110/220 V Noise: 70 Db
Air Flow: 700 M3/H Dimension: 550*440*885mm
Power: 450 W Application: Soldering, Big Laser Cutting, Welding Plant
Material: Mental Shell Warranty: 2 Years
Filters: 5 Layers Weight: 60kg
High Light:

700M3/H Solder Fume Extractor

,

70db Solder Fume Extractor

New Laser Smoke Evacuator Product Welding Dust Remover Air Filter For Smoke





Features:



1, Layers of different filters, clean air fasters and more efficient;

Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

3, Imported integrated AC fan, stable performance and longer life;

4, No need to assemble, plug and turn it on, start to work;

5, The filter element adopts a return structure and can hold dust on all sides;



Instructions:



Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2


Advantages:



1, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

4, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

5, Using noise reduction structure design, to keep working environment quiet;



FAQ:



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes



Product part picture:



700M3/H Mobile Lasar Engraving Marking Fume Extractor 0
