220V Smoke Suction Machine Dust Collector Unit

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

220V Smoke Suction Machine Dust Collector Unit

220V Smoke Suction Machine Dust Collector Unit
220V Smoke Suction Machine Dust Collector Unit

Large Image :  220V Smoke Suction Machine Dust Collector Unit

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-500

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Air Flow: 700 M3/H Dimension: 550*440*885mm
Power: 450 W Application: Soldering, Big Laser Cutting, Welding Plant
Material: Mental Shell Warranty: 2 Years
Filter: 5 Layers Weight: 60kg
Voltage: 110/220 V Noise: 70 Db
High Light:

220V Smoke Suction Machine

,

ROHS Smoke Suction Machine

Smoke Extractor With Fumego Brand For Laser Smoke Filter Welding





Features:

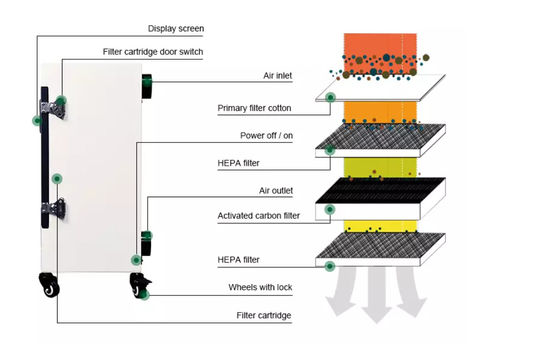

1, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

2, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

3, High negative pressure;

4, The machine is in a very small dimension, never occupying space;

5, The filter element adopts a return structure and can hold dust on all sides;

6, The fan speed is adjustable, timing function to turn on and off, and remote control;



Instructions:



Model FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2


Advantages:



1, The machine is in a very small dimension, never occupying space;

2,The machine have back blowing system, which can easily clean dust on the filters;

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

4, Saving energy and cost, lower noise and larger suction power;

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;



FAQ:



Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

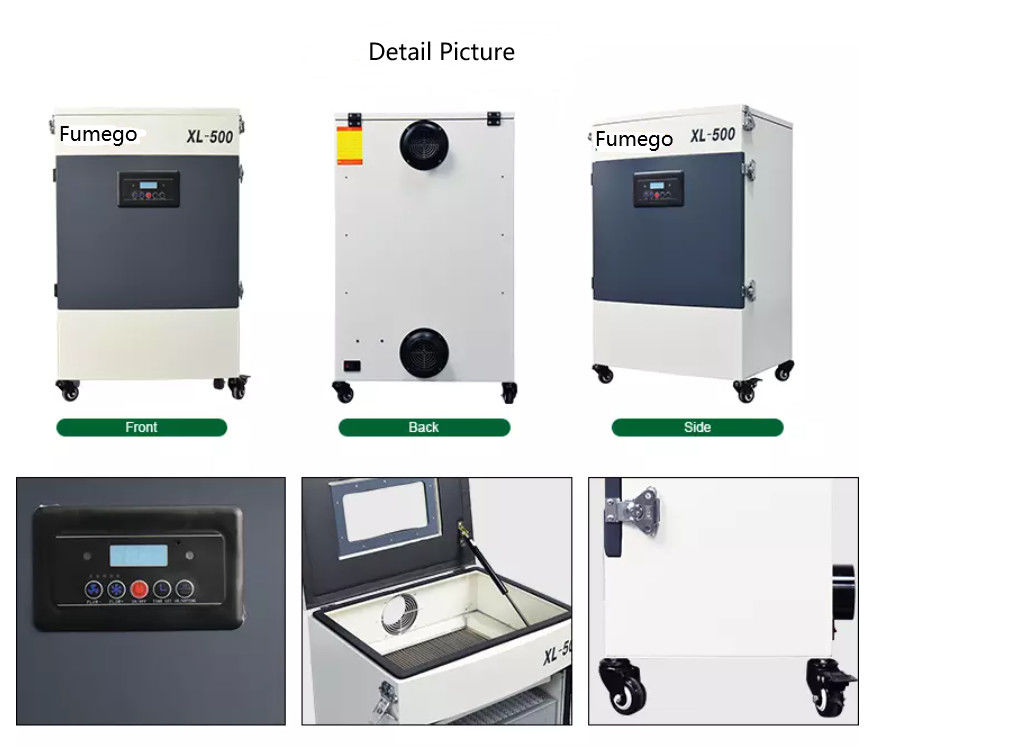

Product part picture:
