2200pa HEPA Fume Extractor

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

2200pa HEPA Fume Extractor

2200pa HEPA Fume Extractor
2200pa HEPA Fume Extractor

Large Image :  2200pa HEPA Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego Qubo
Certification: CE ROHS
Model Number: FL-400W

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Material: Mental Shell Power: 300 W
Filter: 6 Layer Weight: 37 Kg
Voltage: 110/220 V Negative Pressure: 2200 Pa
Noise: 64 Db Air Flow Speed: 10.5*2 M/s
High Light:

2200pa HEPA Fume Extractor

,

6500rpm HEPA Fume Extractor

Industrial Laser Fume Purifier Extractor Smoke Absorber With 6 Layers Filters





Advantages:



1, All mental material shell, durable and sturdy;

2, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

3, Using noise reduction structure design, to keep working environment quiet.

4, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

5, Assembled with DC brushless motor, which will have more stable performance and longer life;



Specifications:

Model FL-400W
Filter 6 Layers
Weight 36.7kg

Dimensions

(L*W*H)

425*315*765mm
Air Flow 480m³/h
Noise <64dB
Power 300W
Voltage AC 110-220V
No load Speed 6500rpm
Air Speed 10.5*2m/s
Negative pressure 2200Pa
Air inlet port 2*75mm





Size of Filter (can be customized)

Fireproof

protection net

No
Primarry filter 365*180*25mm
PP Medium filter 365*175*55mm
Glass fiber filter 365*175*55mm*2

Activated carbon

filter

360*195*250mm *3



Instructions:



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, Saving energy and cost, lower noise and larger suction power;

3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

4, Imported integrated AC fan, stable performance and longer life;

5, No need to assemble, plug and turn it on, start to work;



FAQ:



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

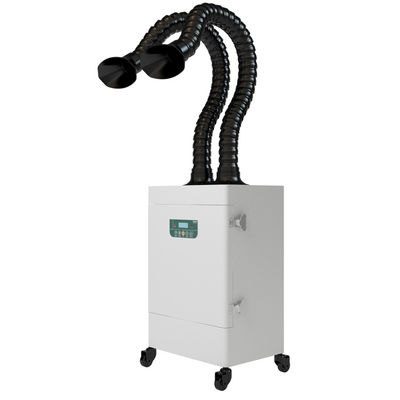

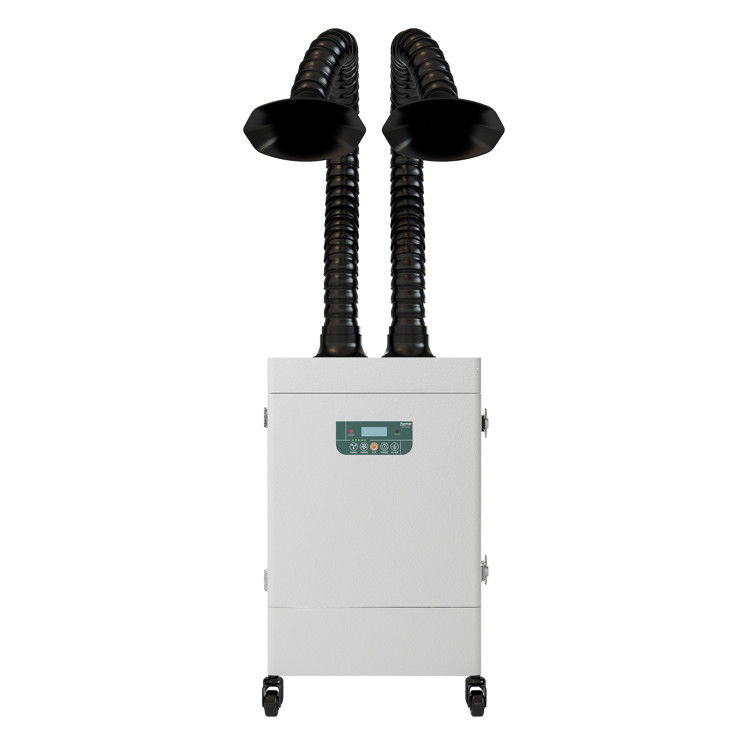

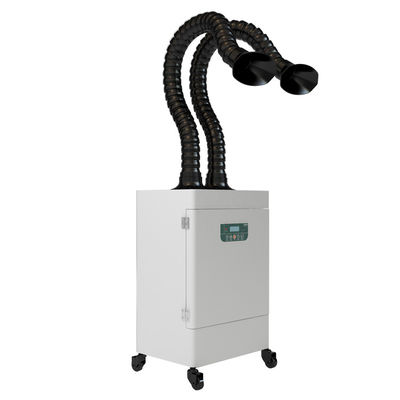

Product picture:
