| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FDL1002 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Air Flow: | 150 M³/h*2 | Keyword: | Welding Arm Fume Extractor |
|---|---|---|---|
| Power: | 200 W | Noise: | 55 Db |
| Warranty: | 2 Years | Voltage: | 110/220 V |
| Material: | Alloy Material Mental Shell | Weight: | 13 KG |
| Name: | Soldering Fume Extractor | Type: | Industrial Fume Extractor |
| High Light: | 200W Nail Salon Fume Extractor,Fumego Nail Salon Fume Extractor,200W Nail Fume Extractor |
||
Portable Laser Soldering Fume Extractor With Double Suction Arms
Advantages:
1, The filter element adopts a return structure and can hold dust on all sides;
2, The fan speed is adjustable, timing function to turn on and off, and remote control;
3, The machine is in a very small dimension, never occupying space;
4 Imported integrated AC fan, stable performance and longer life;
5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
Specifications:
| Model | Fume extractor FDL1002 |
| Power | 200 W |
| Air flow | 150 m³/h * 2 |
| Dimension | 420*245*400 mm |
| Voltage | 110/220 V |
| Noise | 55 db |
| Weight | 13kg |
| Filters | 3 layers |
| Size and Frequency to replace | |
| Pre-filter | 365*180*25 mm 7-60 days |
| Middle filter | 360*170*55 mm 3-6 months |
| HEPA filter | 385*195*250mm 3-6 months |
| Usage | Manual soldering, small Laser machine and Soldering robot |
Instructions:

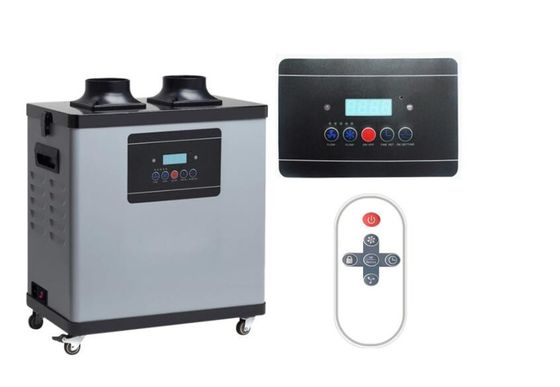

1, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
2, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow.

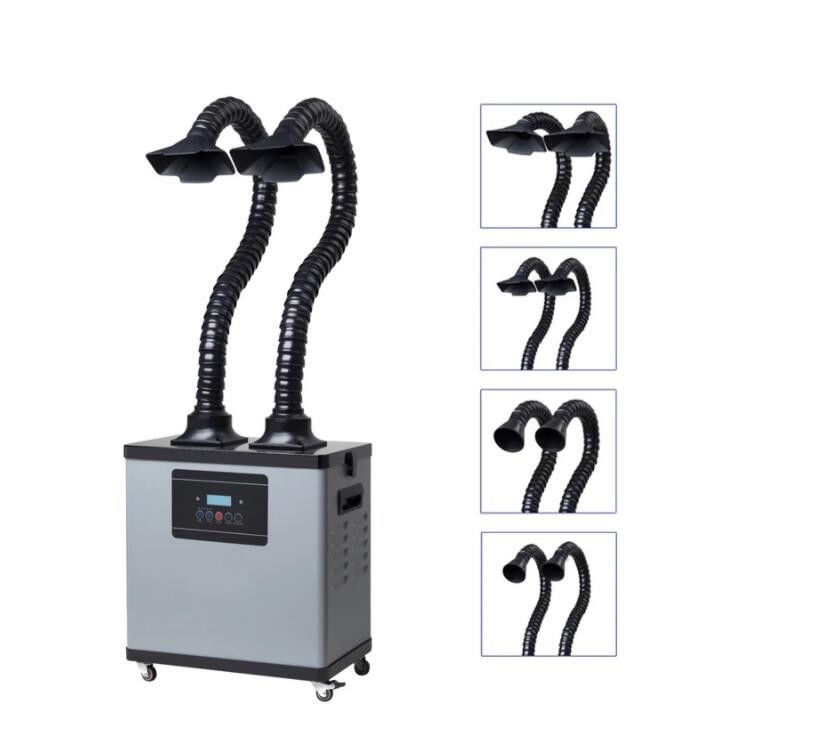

3, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
4, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
5, We are using HEPA h13 degree filters, 0.3 um pollution items filter rate is 99.99%;
FAQ:
Q:Is it easy to purchase the accessories for the machine?
A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.
Q: How long will the machine keep work?
A: At least 8 years.
Q: What is the main parts of the machine?
A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.
Q: Why should we use fume extractor?
A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.
Q: Why choose Fumego?
A: Lower using cost and longer machine life.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.
Product picture:
