110V Mobile Welding Fume Extractor

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

110V Mobile Welding Fume Extractor

110V Mobile Welding Fume Extractor
110V Mobile Welding Fume Extractor

Large Image :  110V Mobile Welding Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1002

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Name: Laser Welding Fume Extractor Type: With Digital Display
Air Flow: 150 M³/h*2 Keyword: Welding Arm Fume Extractor
Power: 200 W Noise: 55 Db
Warranty: 2 Years Voltage: 110/220 V
Material: Alloy Material Mental Shell Weight: 13 KG
High Light:

110V Mobile Welding Fume Extractor

,

13KG Mobile Welding Fume Extractor

,

110V Mobile Welding Fume Extractor With Filtration

Laser Welding Fume Extractor With Double Suction Arms Smoking Instrument





Features:



1, Layers of different filters, clean air fasters and more efficient;

   Our product combined pre-filter and HEPA filter and active carbon filter, make it easier to clean air and in a very efficient way.

2, All mental material shell, durable and sturdy;

3, Our machine can maximize to use the filters;

     We are using different layers filters to collect different size level of pollution.

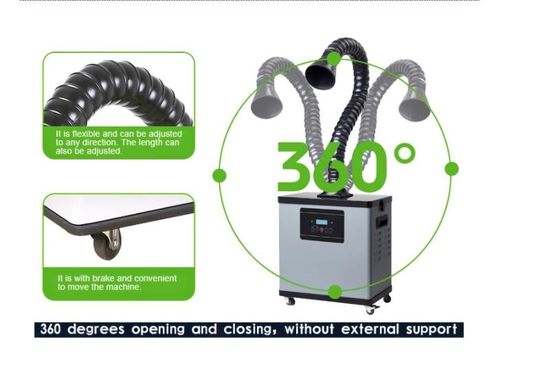

4, The fume tube can be randomly rotate, and can be fix in any position;

    We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

5, Microcomputer chip control, digital display, and remote control;

    Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.



Specifications:



Model Fume extractor FDL1002
Power 200 W
Air flow 150 m³/h * 2
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 55 db
Weight 13kg
Filters 3 layers
Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine and Soldering robot





Advantage:



1, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

2, Saving energy and cost, lower noise and larger suction power;

3, Imported integrated AC fan, stable performance and longer life;

4, High negative pressure;

5, The machine is in a very small dimension, never occupying space;

6, No need to assemble, plug and turn it on, start to work;

7, The filter element adopts a return structure and can hold dust on all sides;



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

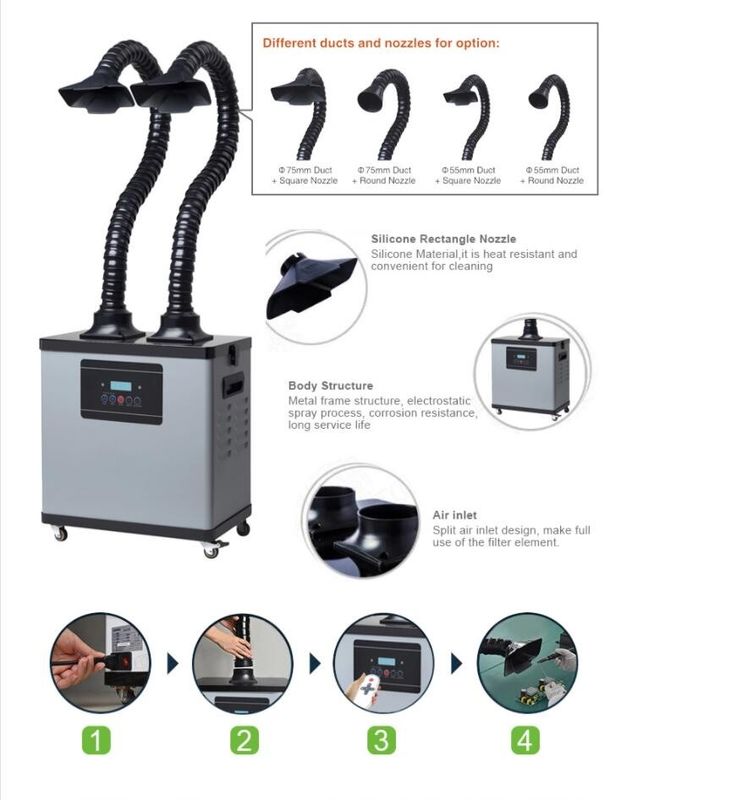

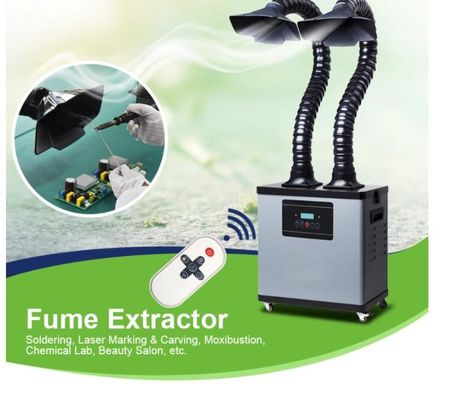

Product picture:



110V Mobile Welding Fume Extractor 0
