Fumego Solder Fume Extractor

Fumego Solder Fume Extractor
Fumego Solder Fume Extractor

Large Image :  Fumego Solder Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1002

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Material: Mental Shell Weight: 13 Kg
Name: Laser Welding Fume Extractor Type: With Digital Display
Air Flow: 150 M³/h*2 Keyword: Welding Arm Fume Extractor
Power: 200 W Noise: 55 Db
Warranty: 2 Years Voltage: 110/220 V
High Light:

Fumego ROHS Solder Fume Extractor

,

200W Solder Fume Extractor

Portable Mobile Fuel Fume Extractor Exhaust Hood Fume Extractor For Industrial





Instruction:



1, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

2, Using noise reduction structure design, to keep working environment quiet.

3, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.

4, Assembled with DC brushless motor, which will have more stable performance and longer life;



Specifications:



Model Fume extractor FDL1002
Power 200 W
Air flow 150 m³/h * 2
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 55 db
Weight 13kg
Filters 3 layers
Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine and Soldering robot





Features:



1, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

2, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

3, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.

4, Saving energy and cost, lower noise and larger suction power;

5, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

6, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.



FAQ:



Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

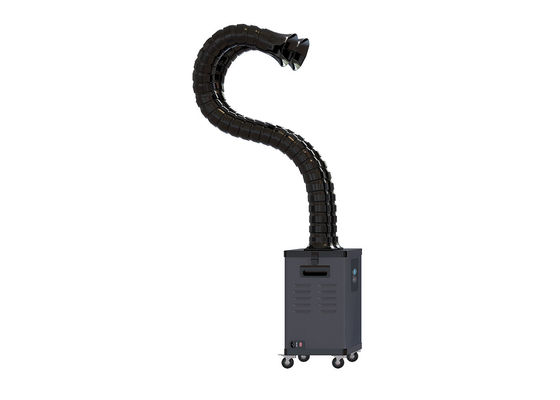

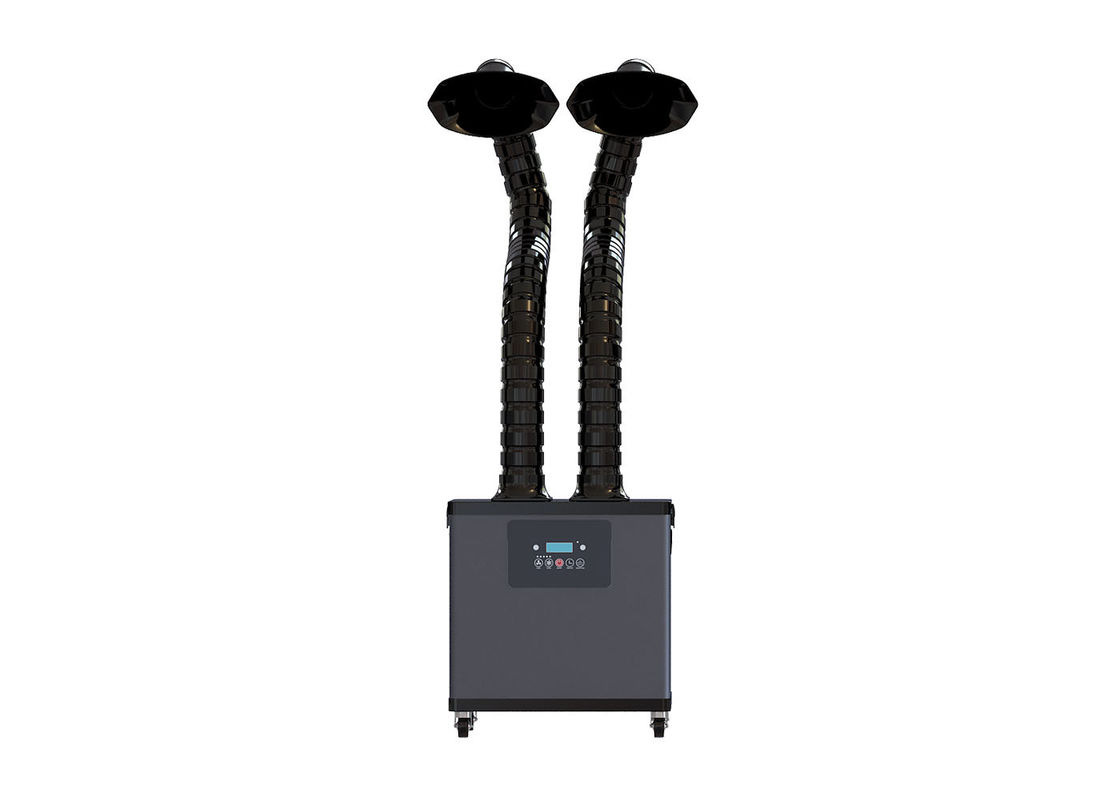

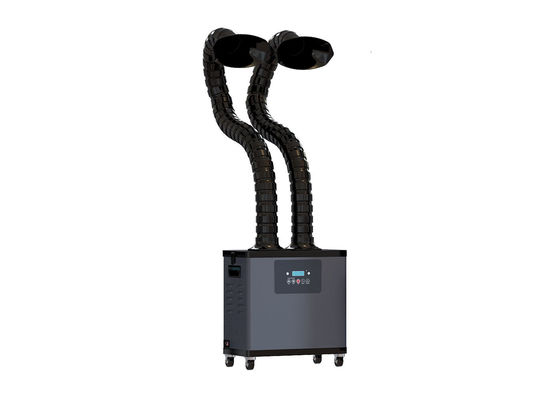

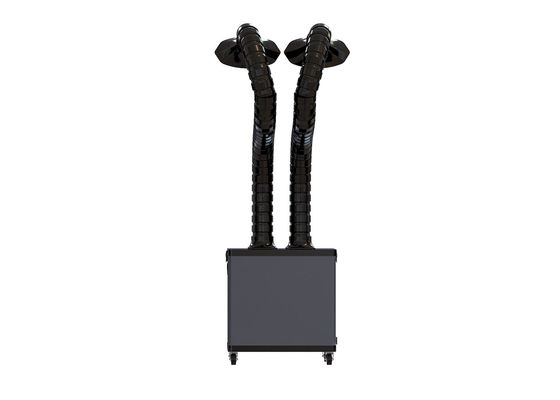

Product picture:



Fumego Solder Fume Extractor 0

Fumego Solder Fume Extractor 1
