| Place of Origin: | China |
| Brand Name: | Fumego Qubo |
| Certification: | CE ROHS |
| Model Number: | DX1001 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Air Flow: | 235m3/h | Power: | 80w |
|---|---|---|---|
| Dimensions: | 420*245*400mm | Filter: | 3 Layers |
| Noise: | <52 Db | Weight: | 12 Kg |
| Application: | Welding Heat-gun Handling | ||
| Highlight: | 420*245*400mm Hair Salon Fume Extractor,80w Hair Salon Fume Extractor,80w Portable Fume Collectors |
||

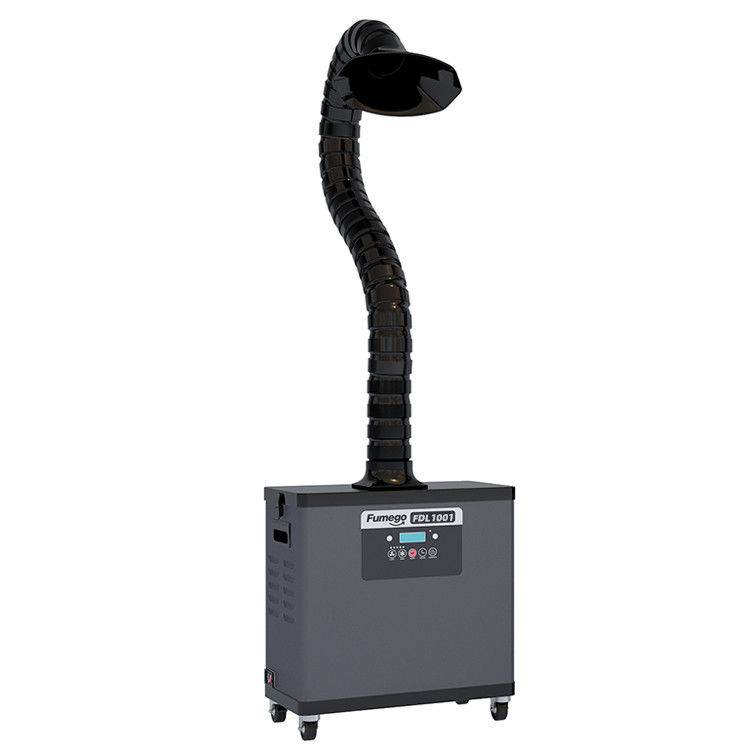

Laser Welding Marking Fume Extractor Mental Frame Structure Micro Computer Control Portable Machine
Features:
1.Multi layer filtration, rapid purification, filter failure sound and light alarm.
2. High negative pressure, high flow, small volume, light weight, easy installation, flexible filter replacement.
3. Long service life, low cost, continuous 24-hour work, can use 40000 hours (i.e. normal use for eight to ten years)
4. Independent research and development of hall less brushless DC motor, high efficiency, long life, zero consumables and zero maintenance, support continuous 24-hour use.
5.Low cost basis: as low as 1.85 yuan / day (8 hours / day)
6.8 years super long warranty for main engine, lifelong after-sales service for customers.
Instructions:
| Power(W) | 80 |
| Dimension(mm) | 420*245*400 |
| Air Flow(m3/h) | 235 |
| Noise(db) | <52 |
| Voltage | 110/220 |
| No-load speed(r/min) | 2000 |
| Wind spped(m/s) | 17 |
| Weight(kg) | 12 |
| Negative pressure(pa) | 2000 |
Advantages:
1,Multiple filtration ensures complete purification of harmful smoke and dust
2.Brushless DC moter,stable long service life
3.Noise canceling design,quieter working place
FAQ
Q:What is the approximate life of the product in continuous operation?
A:The motor life is 40,000 hours (continuous 24 hours) will not be broken, need to consider environmental factors. Usually for 4-5 years it won't be a problem
Q:How long is the tube standard configuration?
A:The 75mm bamboo joint pipe is standard for 1.4m, and the 55mm bamboo joint pipe is standard for 1.2m. (Soft pipe and high temperature pipe are configured according to customer needs, but the shorter the better).
Q:Can smoking pipes be shortened or lengthened at will?
A:It can be shortened or lengthened appropriately; But too long fixation is relatively poor, because there is no support point, easy to sag, it is recommended that the length of bamboo pipe should not exceed 1.5 meters, high temperature resistant pipe and hose should not exceed 2M. (depending on model)
Q:What are the diameter specifications of smoking pipe?
A:Smoking pipe diameter of 50 mm, 65 mm, 75 mm, 90 mm, 100 mm, 120,160,200,300 is usually a PVC material. It can also be customized according to the diameter of the on-site pipeline.

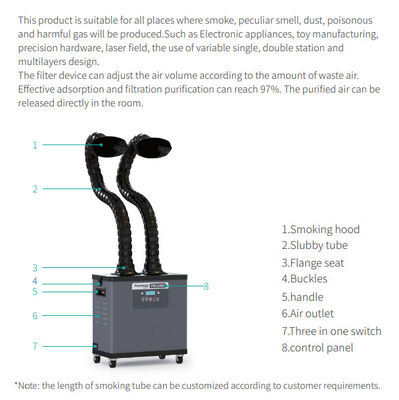

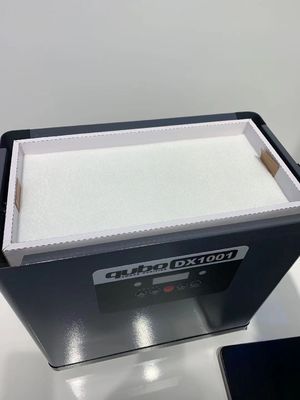

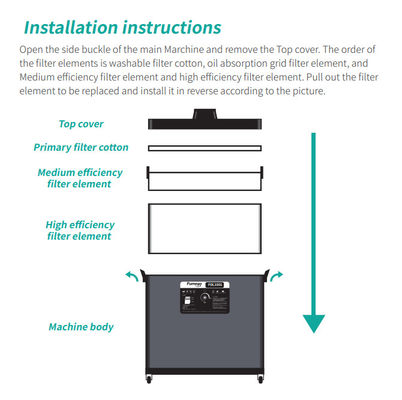

Product part picture:
