2400Pa Explosion Proof Dust Collector

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

2400Pa Explosion Proof Dust Collector

2400Pa Explosion Proof Dust Collector
2400Pa Explosion Proof Dust Collector

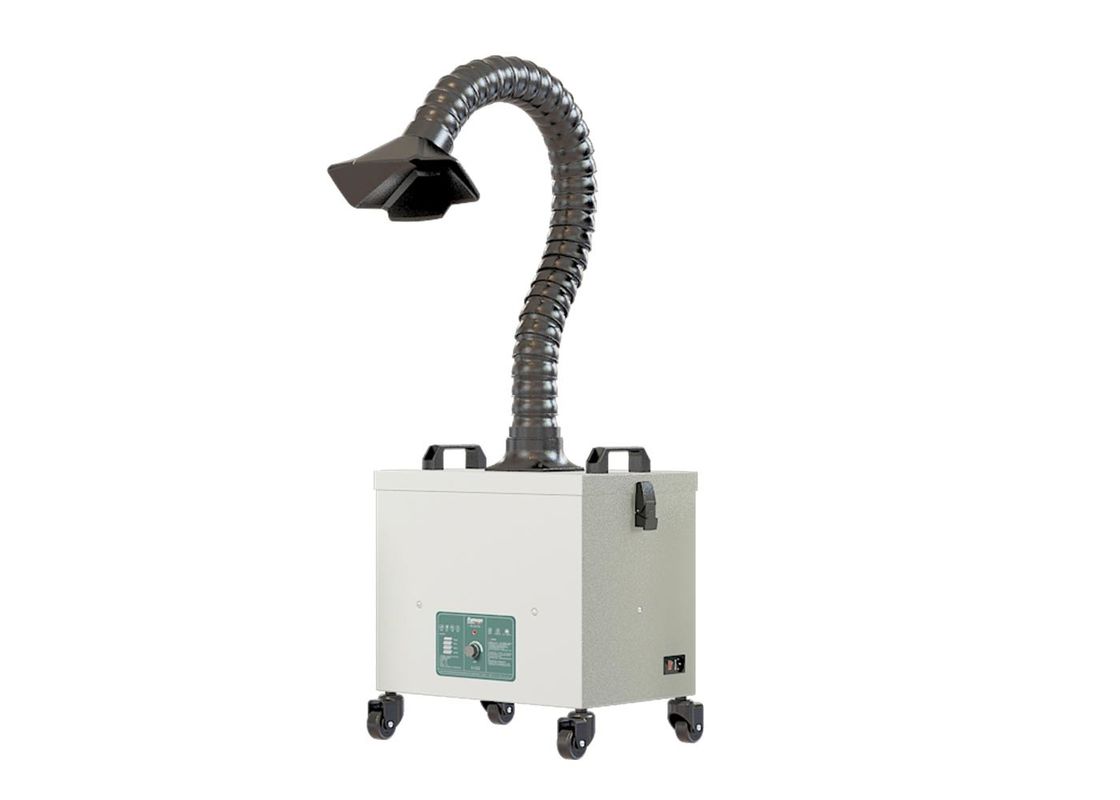

Large Image :  2400Pa Explosion Proof Dust Collector

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL350C-1

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, L/C, D/A, D/P
Supply Ability: 100pcs per week
Detailed Product Description
Voltage: 110/220 V Application: Soldering, Big Laser Cutting, Welding Plant
Weight: 15 Kg Filter Efficiency: 99.97%
After-sales Service: Online Support Power: 330W
Noise: 64 Db Warranty: 2 Years
High Light:

2400Pa Explosion Proof Dust Collector

,

18m/s Explosion Proof Dust Collector

Portable Welding Fume Extractor With Double Flexible Extraction Arms Mobile Purifier





Features:



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

3, Imported integrated AC fan, stable performance and longer life;

4, The machine is in a very small dimension, never occupying space;

5, The fan speed is adjustable, timing function to turn on and off, and remote control;



Specifications:



Model Fume extractor FL350C-1
Power 330 W
Air flow 350 m³/h
Dimension 400*300*360 mm
Voltage 110/220 V
Noise 63 db
Weight 15 kg
Filters 4 layers
Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 365*175*55 mm  3-6 months
HEPA filter 365*195*250mm 3-6 months
Usage Manual soldering, small Laser machine and Soldering robot

Air flow speed



18m/s
No load Speed 6500rpm
Negative pressure 2400Pa
Air inlet port 1*75mm



Advantages:



1, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow;

2, It is also a dust collector, bad smell remover, and fire proof;

We have a fire proof frame screen, bellows pocket to collect dust, and PP HEPA filter and active carbon filters to remove bad gas.

3, Portable because it assemable with 4 wheels;

4, No need to assemble, plug and turn it on, start to work;

5, Assembled with DC brushless motor, which will have more stable performance and longer life;



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: How long will the machine keep work?

A: At least 8 years.

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

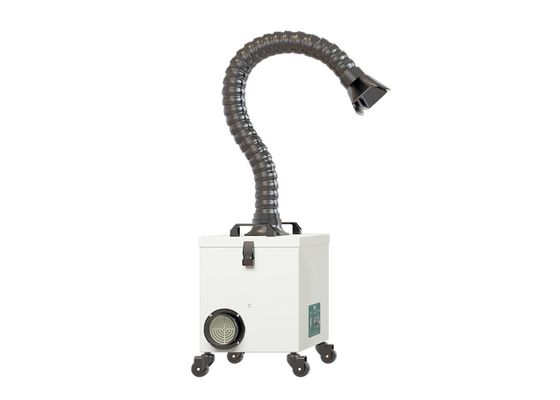

Product picture:



2400Pa Explosion Proof Dust Collector 0
