| Place of Origin: | China |
| Brand Name: | Fumego |
| Certification: | CE ROHS |
| Model Number: | FL300 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton box package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100pcs per week |
| Noise: | 59 Db | Warranty: | 2 Years |
|---|---|---|---|
| Voltage: | 220/110 V | Application: | Laser Marking, Graving, Welding |
| Material: | Mental Shell, Alloy Material | Product Name: | Laser Fume Extractor |
| Weight: | 36.7 Kg | Air Volume: | 450 M³/h |
| After Sales: | Online Support | Power: | 330W |
| Highlight: | 450m3/H Laser Smoke Filter,ROHS Laser Smoke Filter |
||

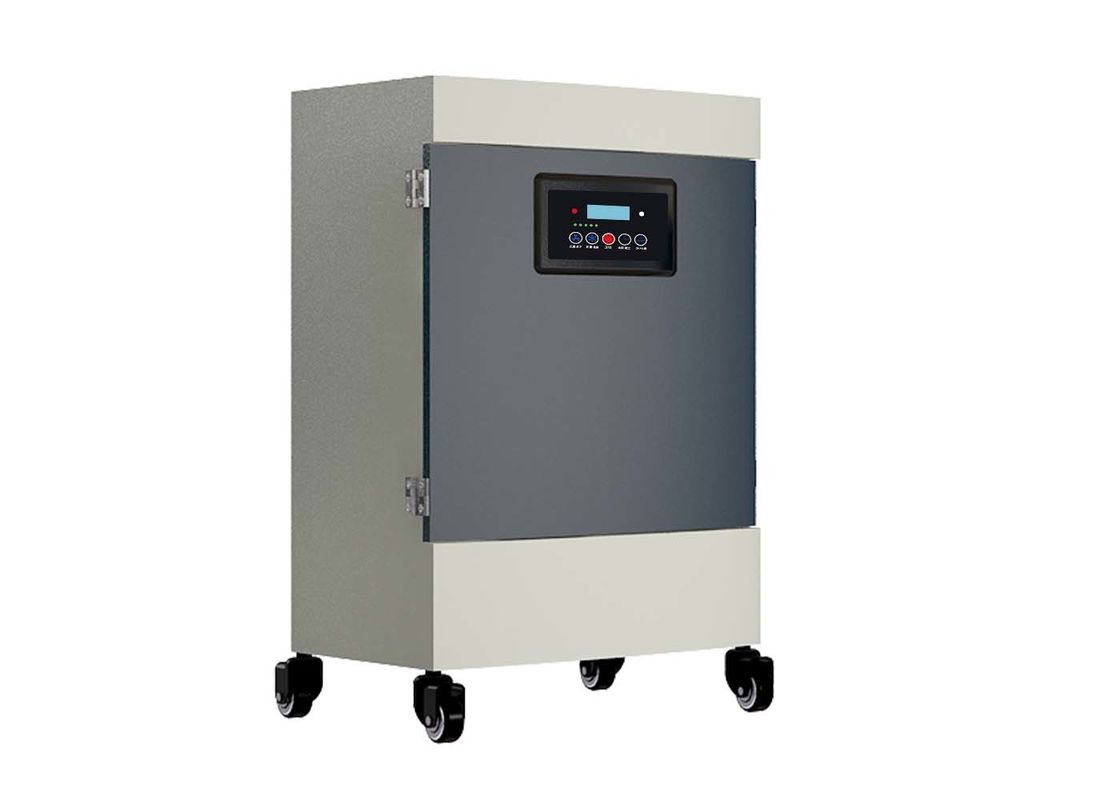

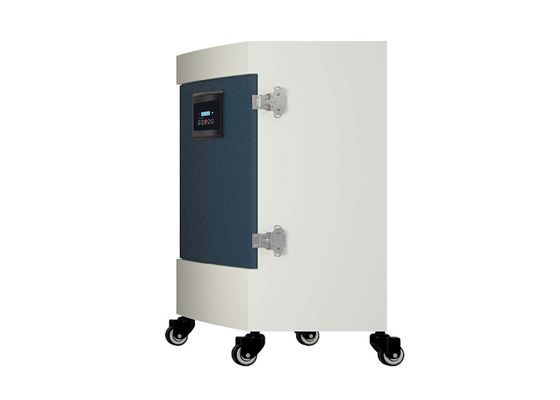

High Quality Laser Smoke Filter Fume Extractor Solder Dust Absorber
Instructions:
| Modle | FL-300 | FL-500 | FL-700 |
| Filter | 3 Layers | 5 Layers | 6 Layers |
| Weight | 36.7kg | 60kg | 70kg |
|
Dimensions (L*W*H) |
425*315*700mm | 550*440*885mm | 550*440*1035mm |
| Air Flow | 450m³/h | 700m³/h | 750m³/h |
| Noise | <59dB | <70dB | <75dB |
| Power | 330W | 450W | 700W |
| Voltage | AC 110-220V | AC 110-220V | AC 110-220V |
| Size of Filter (can be customized) | |||
|
Fireproof protection net |
No | 415*335*25mm | 415*335*25mm |
| Primarry filter | 450*380*100mm | 450*380*100mm | 450*380*100mm |
| PP Medium filter | 450*380*50mm | 450*380*50mm | 450*380*50mm |
| Glass fiber filter | No | No | 450*380*100mm |
|
Activated carbon filter |
450*380*50mm | 450*380*50mm*2 | 450*380*50mm*2 |
Features:
1, All mental material shell, durable and sturdy;
2, Our machine can maximize to use the filters;
We are using different layers filters to collect different size level of pollution.
3, The fume tube can be randomly rotate, and can be fix in any position;
We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.
4, Microcomputer chip control, digital display, and remote control;
Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.
5, It will alarm when the filters is out of service;
People can be easily know when to replace filters and any problem happened if the machine is out of work.
Advantages:
1, The fans material is special alloy, which can avoid corrosion;
The fans runs very stable and reliable, very big air flow.
2, Saving energy and cost, lower noise and larger suction power;
3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;
4,The machine have back blowing system, which can easily clean dust on the filters;
Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.
5, Imported integrated AC fan, stable performance and longer life;
FAQ:
Q: Are you a manufacture or trade company?
A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.
Q: What is the difference between fume extractor and air purifier?
A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.
Q: How long should we clean the tube?
A: It depends on the real situation of the tube, need to inspection every week.
Q: What should we do if the suction power cant clean all smoke?
A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.
