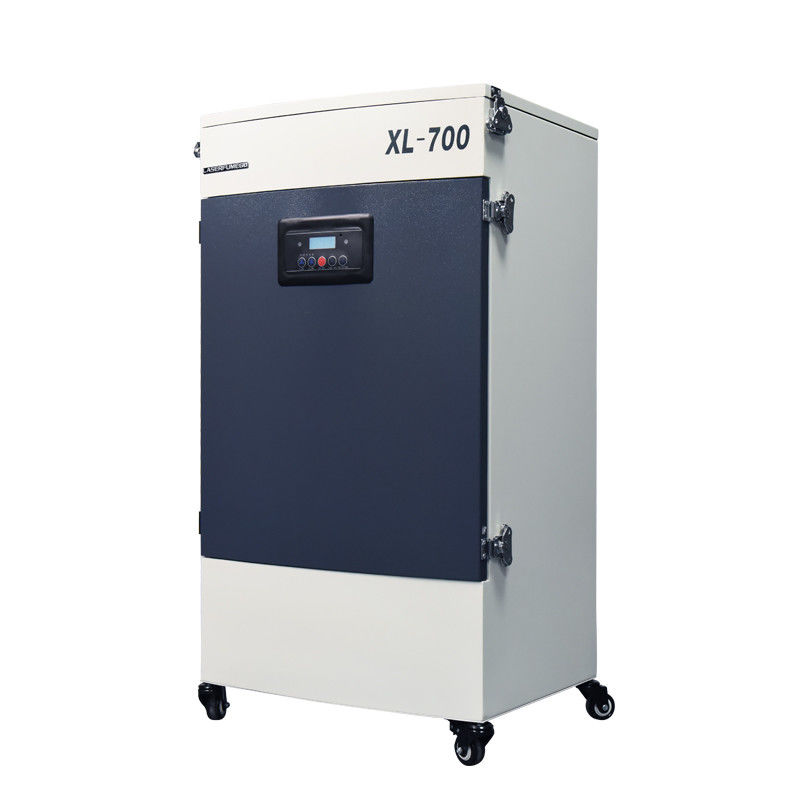

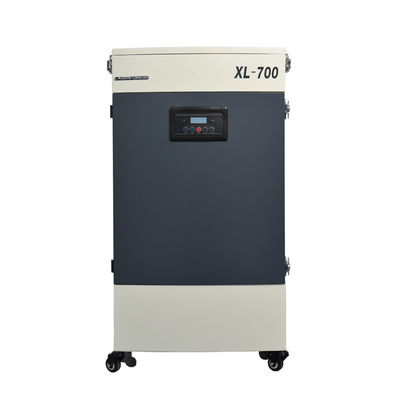

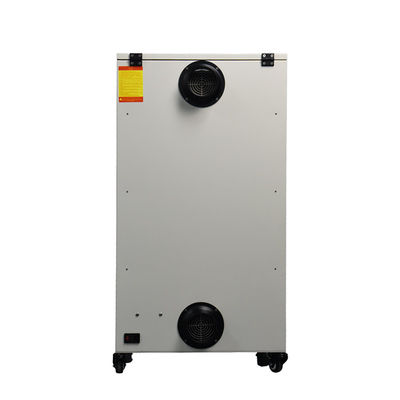

700w Mobile Laser Welding Fume Extraction Unit

700w Mobile Laser Welding Fume Extraction Unit
700w Mobile Laser Welding Fume Extraction Unit

Large Image :  700w Mobile Laser Welding Fume Extraction Unit

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FL-700

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
After-sales Service Provided: Online Support Power: 700 W
Noise: 70 Db Warranty: 2 Years
Voltage: 110/220 V Application: SMT, Wave-soldering, Big Laser Cutting, Welding Plant
Weight: 70 KG Color: White And Mental Shell
High Light:

700w Mobile Welding Fume Extraction Unit

,

70 KG Mobile Welding Fume Extraction Unit

,

700w Mobile Welding Extraction Units

700w Power Portable Welding Fume Dust Exhaust Extraction Machine Air Cleaning Extractor





Advantages:



1, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

2, Saving energy and cost, lower noise and larger suction power;

3, There is a watch window, from which we can easily notice the filter situation and whether it should be replaced or not;

4, Imported integrated AC fan, stable performance and longer life;

5, The machine is in a very small dimension, never occupying space;



Specifications:

Modle FL-300 FL-500 FL-700
Filter 3 Layers 5 Layers 6 Layers
Weight 36.7kg 60kg 70kg

Dimensions

(L*W*H)

425*315*700mm 550*440*885mm 550*440*1035mm
Air Flow 450m³/h 700m³/h 750m³/h
Noise <59dB <70dB <75dB
Power 330W 450W 700W
Voltage AC 110-220V AC 110-220V AC 110-220V
Size of Filter (can be customized)

Fireproof

protection net

No 415*335*25mm 415*335*25mm
Primarry filter 450*380*100mm 450*380*100mm 450*380*100mm
PP Medium filter 450*380*50mm 450*380*50mm 450*380*50mm
Glass fiber filter No No 450*380*100mm

Activated carbon

filter

450*380*50mm 450*380*50mm*2 450*380*50mm*2



Features:



1, No need to assemble, plug and turn it on, start to work;

2, The filter element adopts a return structure and can hold dust on all sides;

3,The machine have back blowing system, which can easily clean dust on the filters;

Cylinder filters assemble with pulse back blowing system, easy to clean filters and make the filters reusable.

4, Imported integrated AC fan, stable performance and longer life;

5, Portable because it assemble with 4 wheels;

6, High negative pressure;

7, The machine is in a very small dimension, never occupying space;



Pictures



700w Mobile Laser Welding Fume Extraction Unit 0



FAQ:



Q: Are you a manufacture or trade company?

A: We are the biggest manufacture for the fume extractor in China, and focus on the Laser, soldering machine fume clean more than 15 years.

Q: Where is your factory?

A: We have 2 manufacture plant, in Shenzhen and Dongguan, have more than 500 workers.

Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power can’t clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

Q: How long will the machine keep work?

A: At least 8 years.
