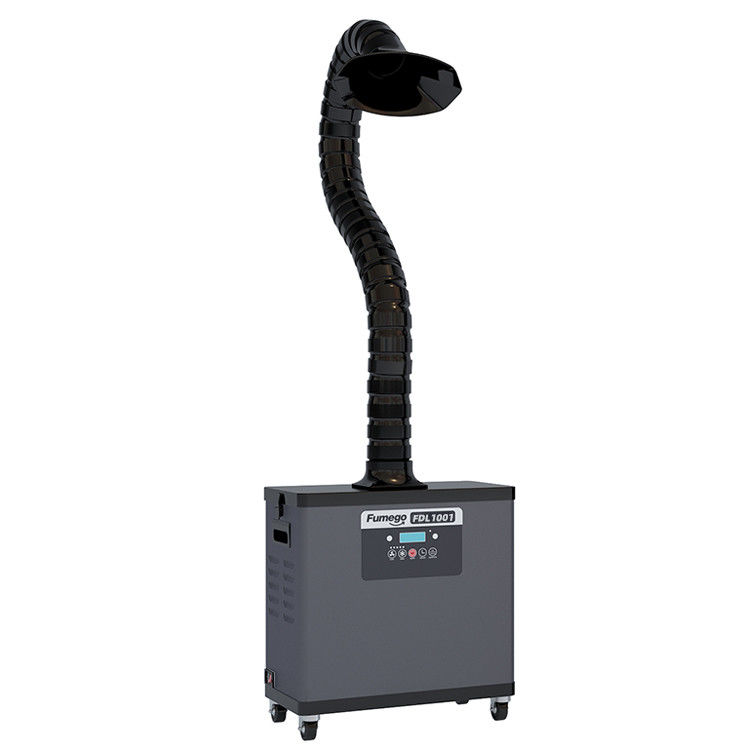

80W Laser Fume Extractor

Certification
China Shenzhen Future Technology Co., Ltd certification
China Shenzhen Future Technology Co., Ltd certification
I'm Online Chat Now

80W Laser Fume Extractor

80W Laser Fume Extractor
80W Laser Fume Extractor

Large Image :  80W Laser Fume Extractor

Product Details:

Place of Origin: China
Brand Name: Fumego
Certification: CE ROHS
Model Number: FDL1001

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Noise: <52 Warranty: 2 Years
Weight: 12 Kg Application: Manual Soldering
Material: Mental Body Shell Air Volume: 235 M³/h
Voltage: 110V/220V Keyword: Soldering Fume Extractor
Color: Grey With Black Power: 80W
High Light:

80W Laser Fume Extractor

,

CE Laser Fume Extractor

Remote Control Fume Extractor Laser Marking Soldering Smoke Suction Machine





Advantage:

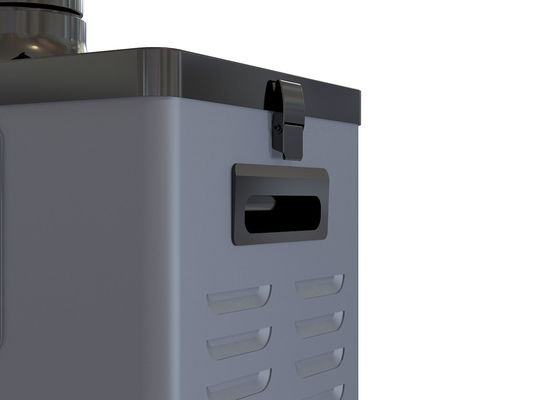

1, All mental material shell, durable and sturdy;

2, Pre-filter, Middle filter and high efficient filter can be replaced independently, very convenient and easy to do the replace job.

3, Our machine can maximize to use the filters;

We are using different layers filters to collect different size level of pollution.

4, Using noise reduction structure design, to keep working environment quiet.

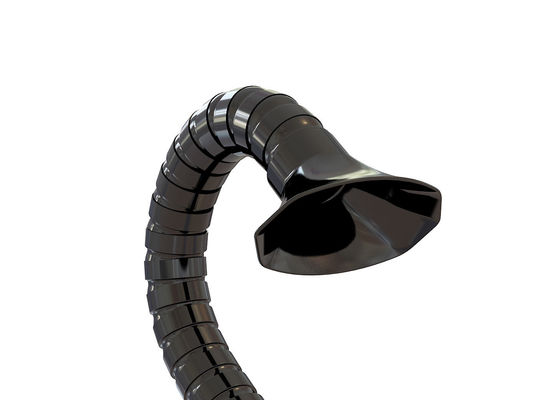

5, The fume tube can be randomly rotate, and can be fix in any position;

We using bamboo shape tube and 360°rotation support tube, to make the machine position very flexible during work.



Specifications:



Model Fume extractor FDL1001
Power 80 W
Air flow 235 m³/h
Dimension 420*245*400 mm
Voltage 110/220 V
Noise 52 db
Weight 12 kg
Filters 3 layers
Size and Frequency to replace Size and Frequency to replace
Pre-filter 365*180*25 mm  7-60 days
Middle filter 360*170*55 mm  3-6 months
HEPA filter 385*195*250mm 3-6 months
Usage Manual soldering, small Laser machine



Features:



1, Assembled with DC brushless motor, which will have more stable performance and longer life;

2, Microcomputer chip control, digital display, and remote control;

Our machine have a very good outlooking, we have digital display, and can be controlled by touch screen and can be remote in a distance.

3, It will alarm when the filters is out of service;

People can be easily know when to replace filters and any problem happened if the machine is out of work.

4, The fans material is special alloy, which can avoid corrosion;

The fans runs very stable and reliable, very big air flow.



FAQ:



Q: What is the difference between fume extractor and air purifier?

A: The working princeple is closed, But application is different. Fume extractor is more professional in clean fume, dust and bad smells.

Q: What is your advantage compared with other factory?

A: Lower cost of usage, save power,and more competitive price.

Q: How long should we clean the tube?

A: It depends on the real situation of the tube, need to inspection every week.

Q: How long is needed for manufacture?

A: It always be about 3-7days, big quantity need to discuss.

Q: Why choose Fumego?

A: Lower using cost and longer machine life.

Q: What should we do if the suction power cant clean all smoke?

A: Check the distance of the air input and smoke produced place, air flow near, length and diameter of the tube,.

Q: Do you do OEM?

A: Yes

Q: What is the main parts of the machine?

A: Motor, control parts, Power source, Main body shell, tube, Smoke cover and filters etc.

Q: Why should we use fume extractor?

A: There are so many advantages for fume extractor, save cost, convenient to use, air clean efficiency, keep your staff heathy and so on.

Q:Is it easy to purchase the accessories for the machine?

A: Yes, we always keep machine and accessories in stock, can ship to you whthin 1 week.

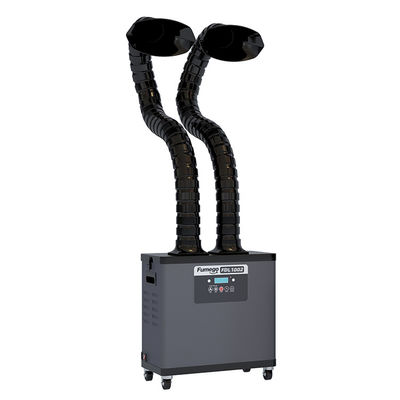

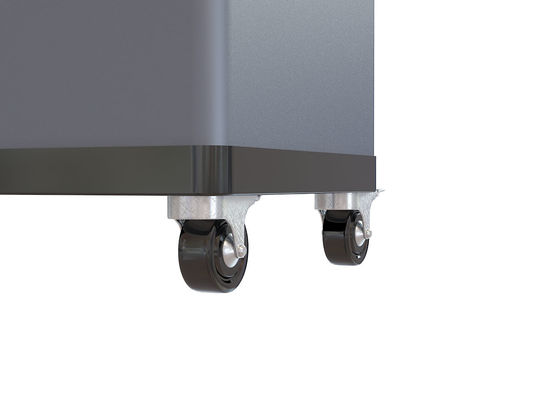

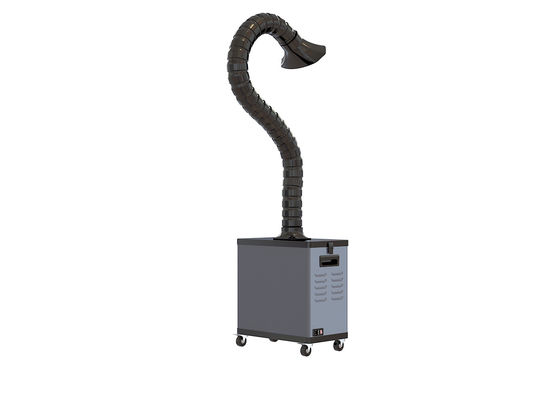

Product picture:



80W Laser Fume Extractor 0

80W Laser Fume Extractor 1
